Components and Components Location: Components

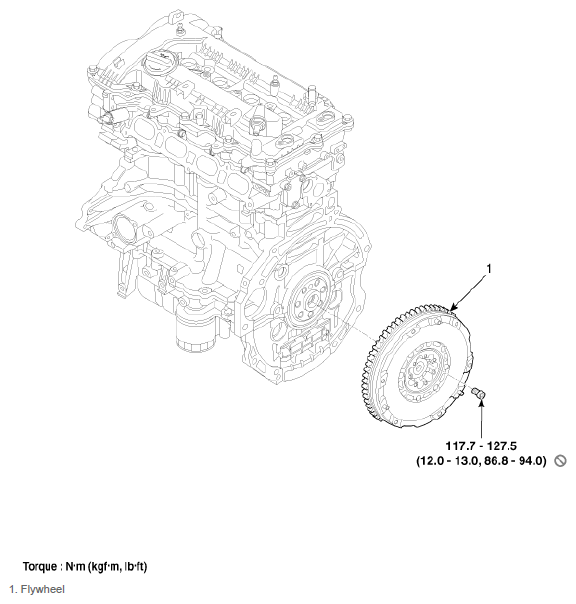

Fig 1: Flywheel Component Location With Torque Specification
G12826188Courtesy of KIA MOTORS AMERICA, INC.
