Circuit Inspection

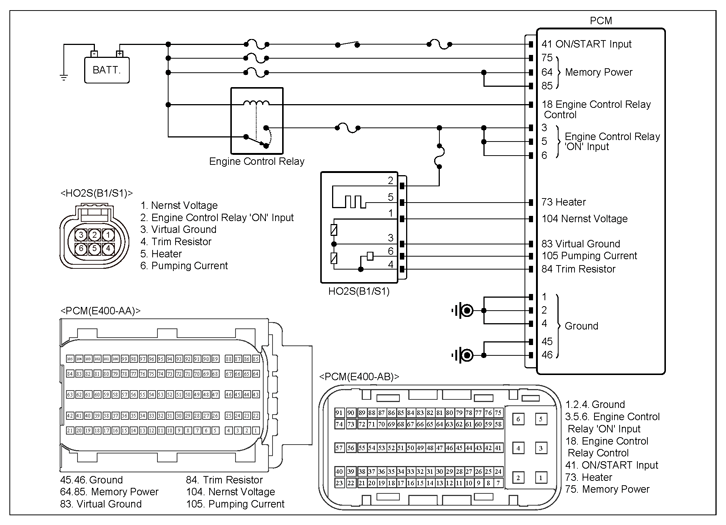

G12850942Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 HO2S (B1/S1) harness connector 2 (power) Chassis ground - Approx. 12V
HO2S (B1/S1) harness connector 5 (heater) Chassis ground - Approx. 2.5V

Good

No Good
