LIN Communication Inspection
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition "OFF"
- Refer to "REMOVAL " and remove necessary parts to get access to Front & Rear PAS Sensor connector.
- Ignition "ON"
- Back probe and measure signal waveform between Pin No. 1 (LIN) terminal of each Front & Rear PAS sensor harness connector and chassis ground.
Specification: Refer to figure below

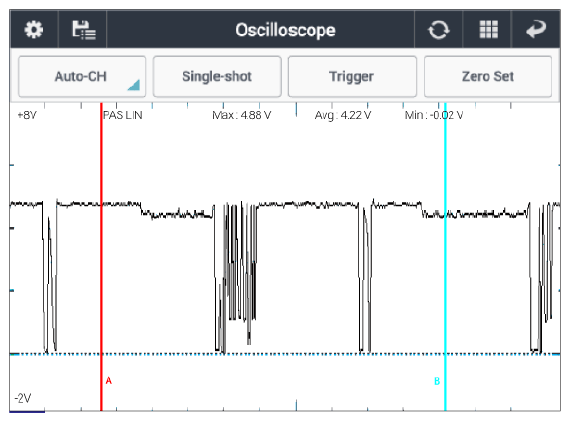

Figure) Signal Waveform of Parking Sensor
- Is measured value within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- If no problems were found with the circuits or connectors, replace concerned Front & Rear Sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
