Monitor KDS Data

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Refer to "REMOVAL " and remove necessary parts to get access to Front & Rear PAS Sensor connector.
  3. Ignition "ON"
  4. Back probe and measure signal waveform between Pin No. 1 (LIN) terminal of Front & Rear PAS sensor harness connector and chassis ground.

    Specification:  Refer to figure below

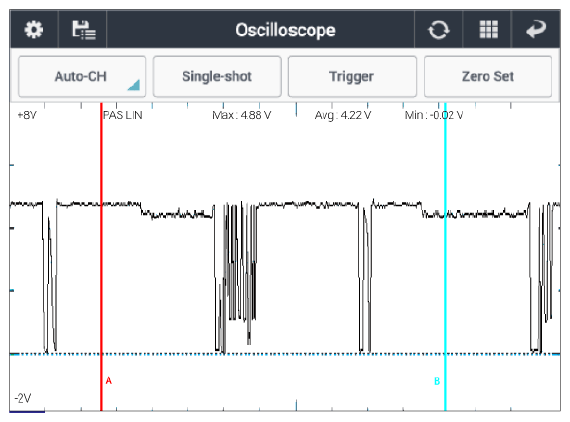

    G12813738Courtesy of KIA MOTORS AMERICA, INC.

    Figure) Signal Waveform of Parking Sensor

  5. Is measured value within specification?

    YES

    NO
