Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12852936Courtesy of KIA MOTORS AMERICA, INC.
G12852937Courtesy of KIA MOTORS AMERICA, INC.

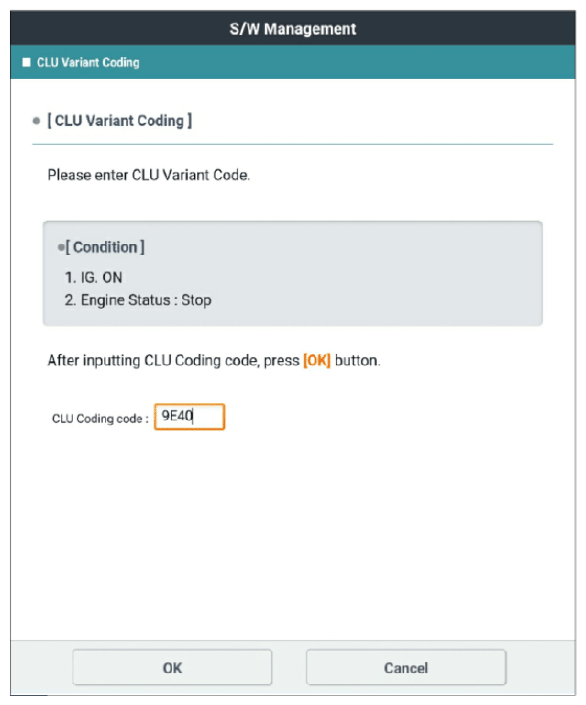

G12852938Courtesy of KIA MOTORS AMERICA, INC.

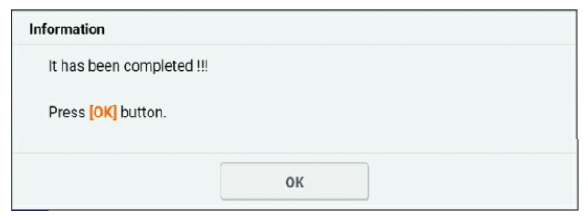

G12852939Courtesy of KIA MOTORS AMERICA, INC.

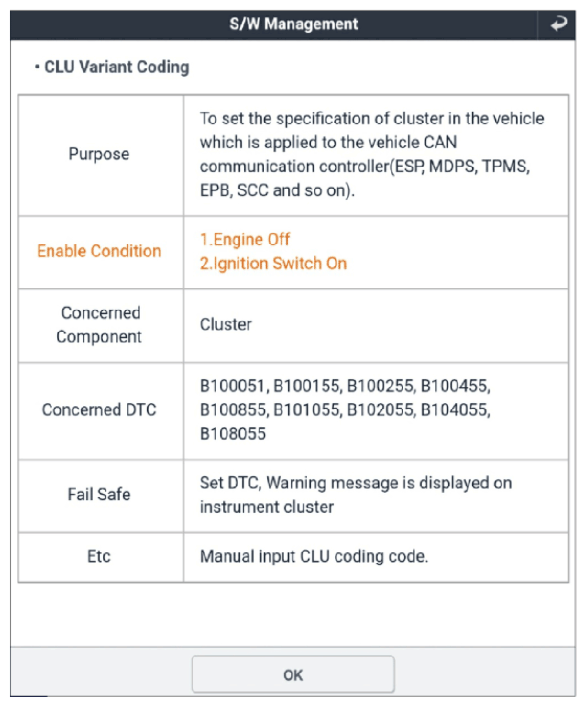

G12852940Courtesy of KIA MOTORS AMERICA, INC.

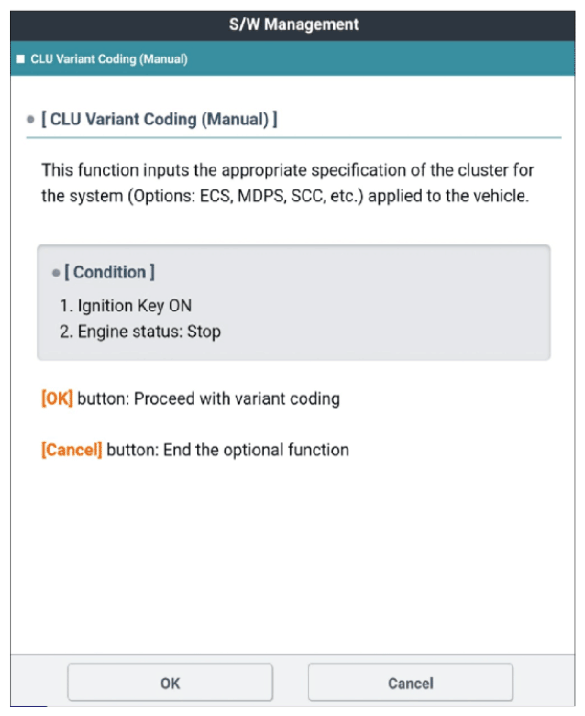

G12852941Courtesy of KIA MOTORS AMERICA, INC.

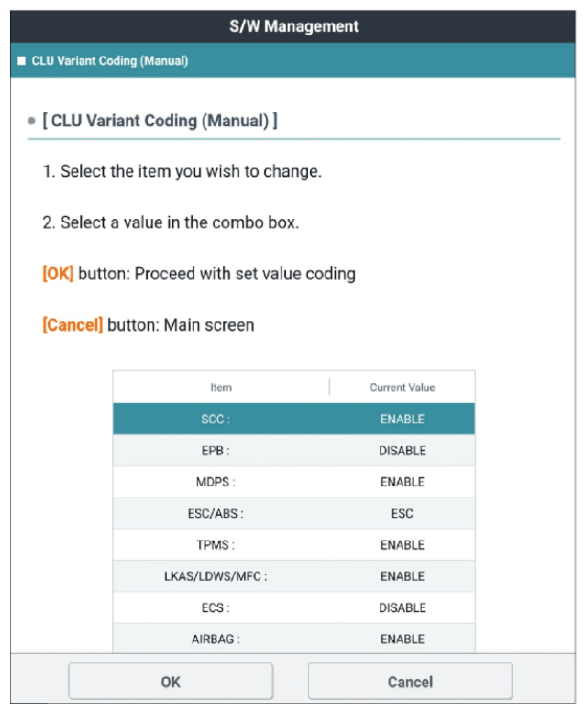

G12852942Courtesy of KIA MOTORS AMERICA, INC.

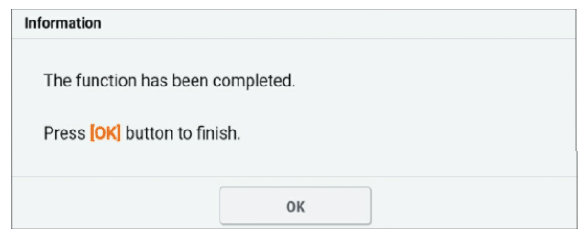

G12852943Courtesy of KIA MOTORS AMERICA, INC.
