Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

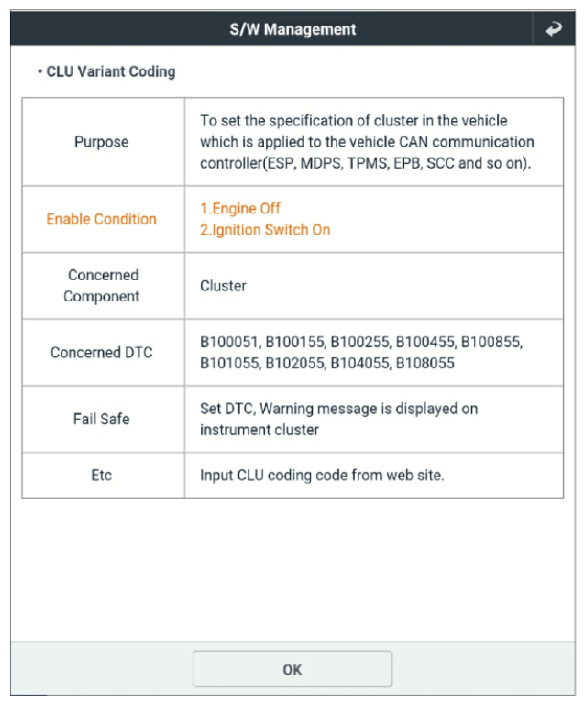

G12853016Courtesy of KIA MOTORS AMERICA, INC.

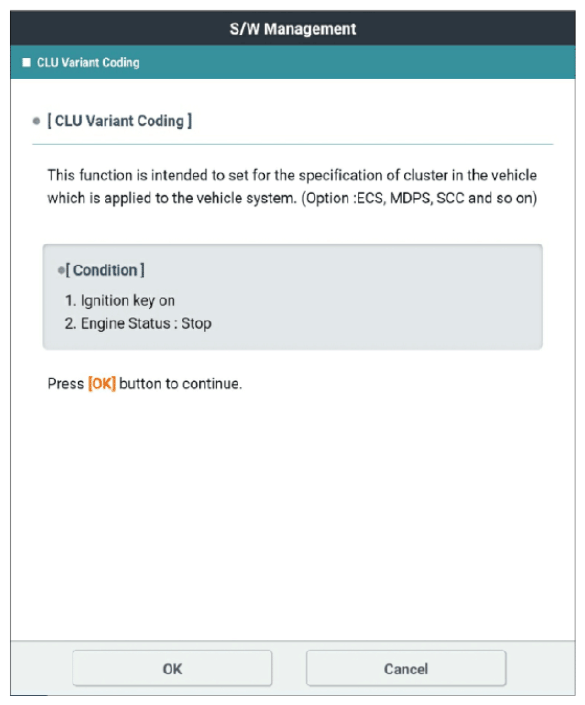

G12853017Courtesy of KIA MOTORS AMERICA, INC.

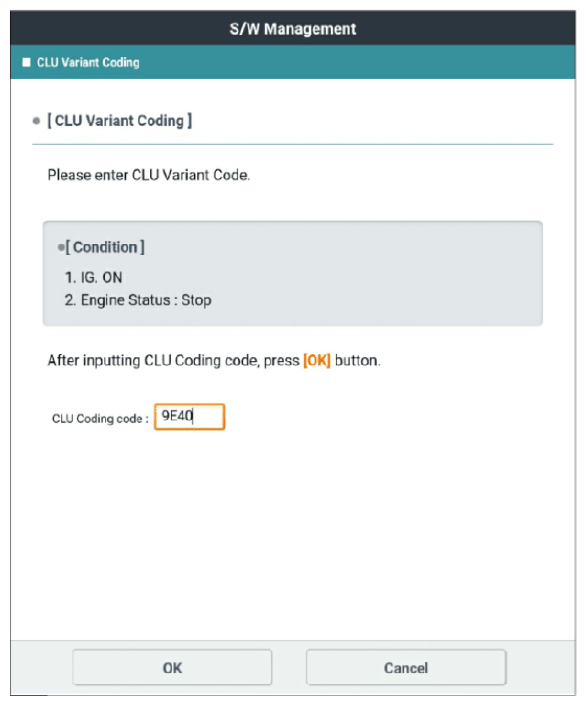

G12853018Courtesy of KIA MOTORS AMERICA, INC.

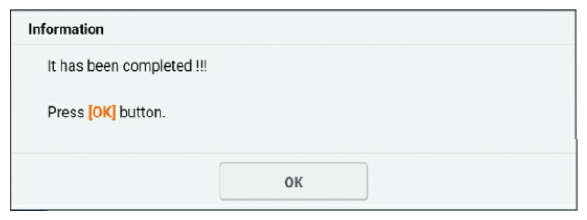

G12853019Courtesy of KIA MOTORS AMERICA, INC.

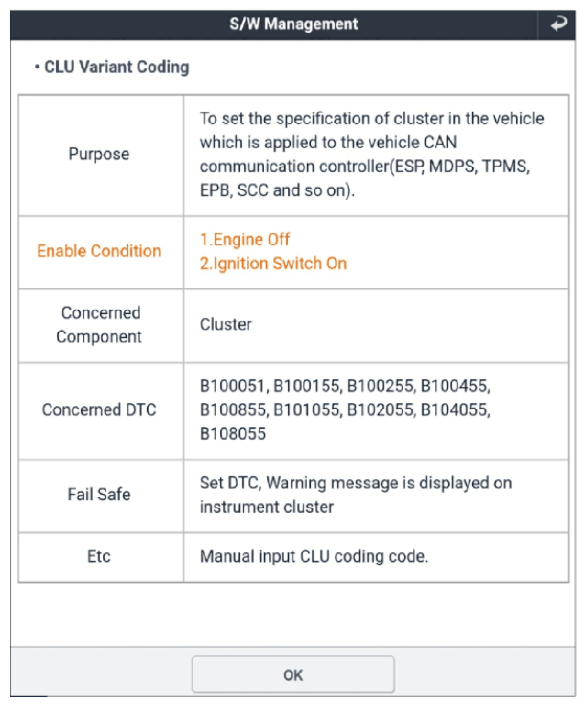

G12853020Courtesy of KIA MOTORS AMERICA, INC.

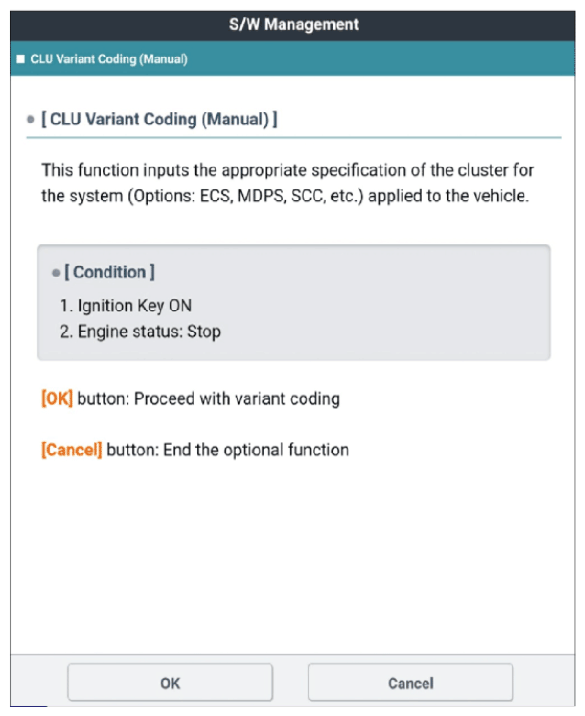

G12853021Courtesy of KIA MOTORS AMERICA, INC.

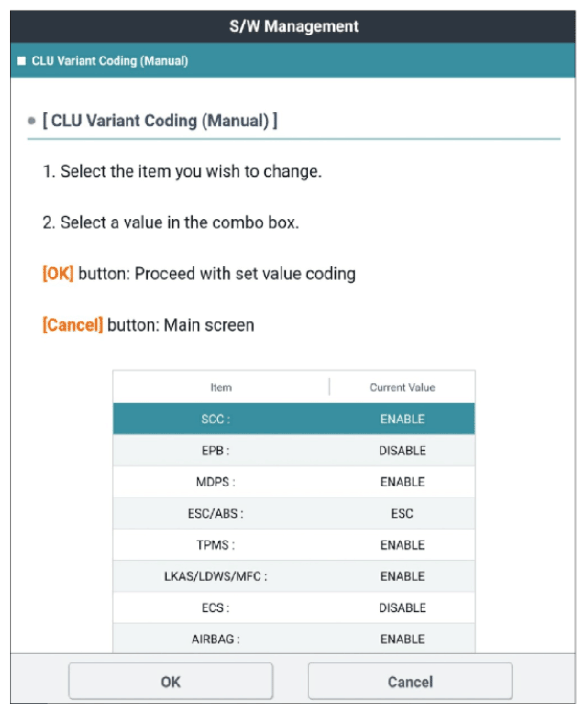

G12853022Courtesy of KIA MOTORS AMERICA, INC.

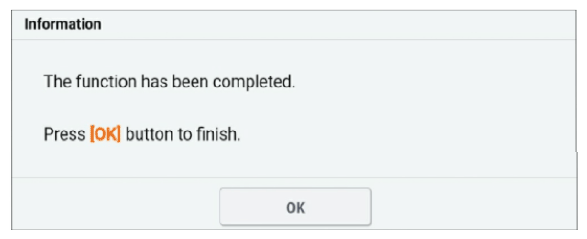

G12853023Courtesy of KIA MOTORS AMERICA, INC.
