Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12853096Courtesy of KIA MOTORS AMERICA, INC.
G12853097Courtesy of KIA MOTORS AMERICA, INC.

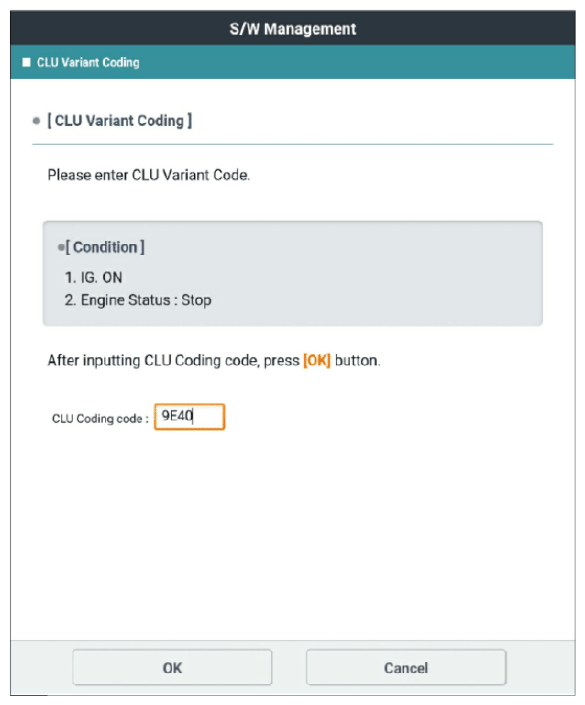

G12853098Courtesy of KIA MOTORS AMERICA, INC.

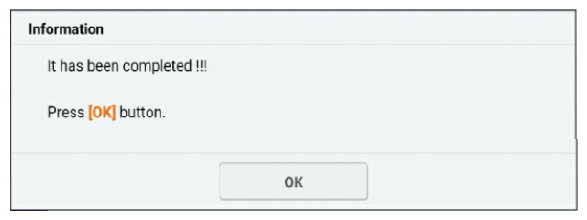

G12853099Courtesy of KIA MOTORS AMERICA, INC.

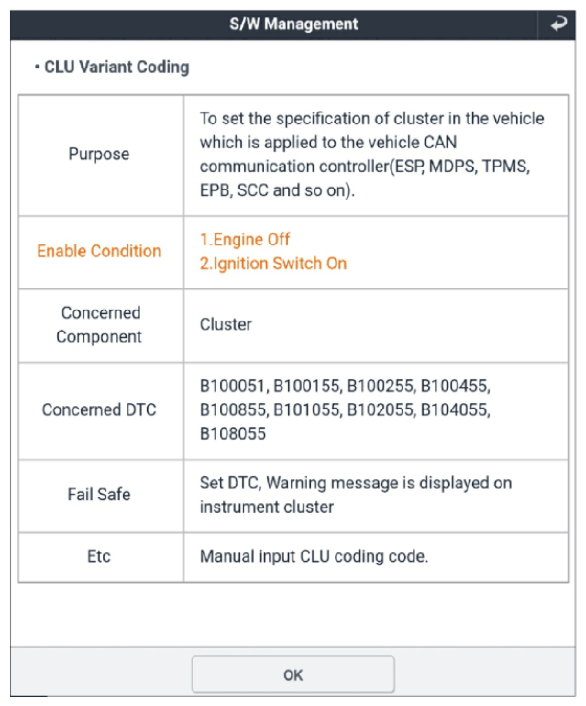

G12853100Courtesy of KIA MOTORS AMERICA, INC.

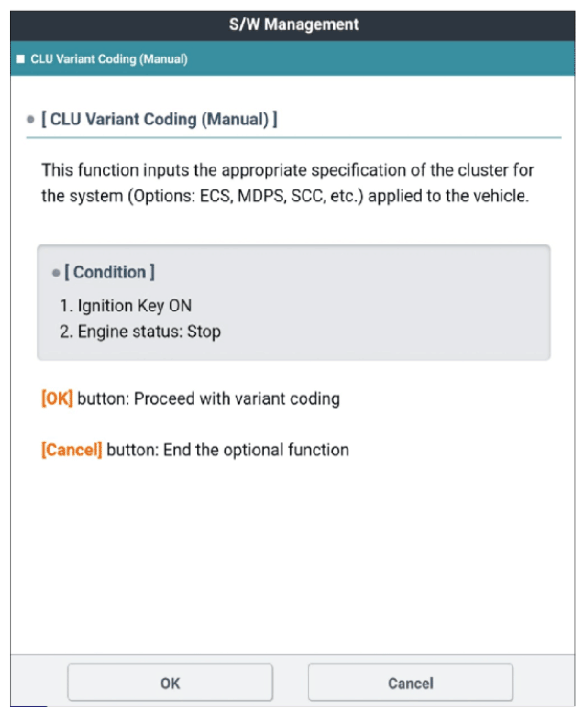

G12853101Courtesy of KIA MOTORS AMERICA, INC.

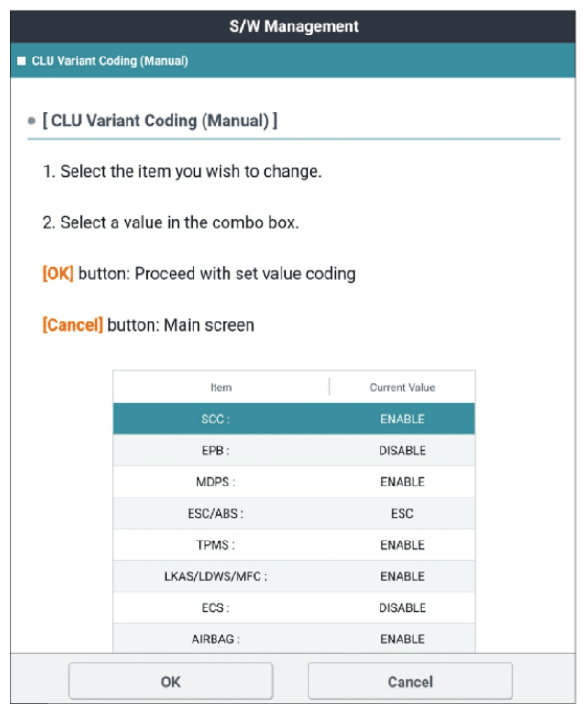

G12853102Courtesy of KIA MOTORS AMERICA, INC.

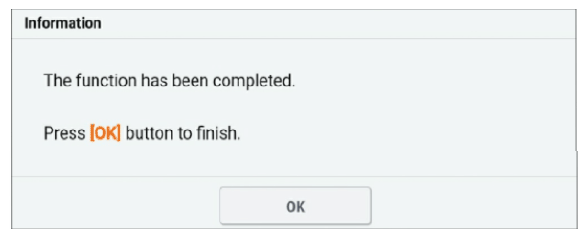

G12853103Courtesy of KIA MOTORS AMERICA, INC.
