Component Inspection

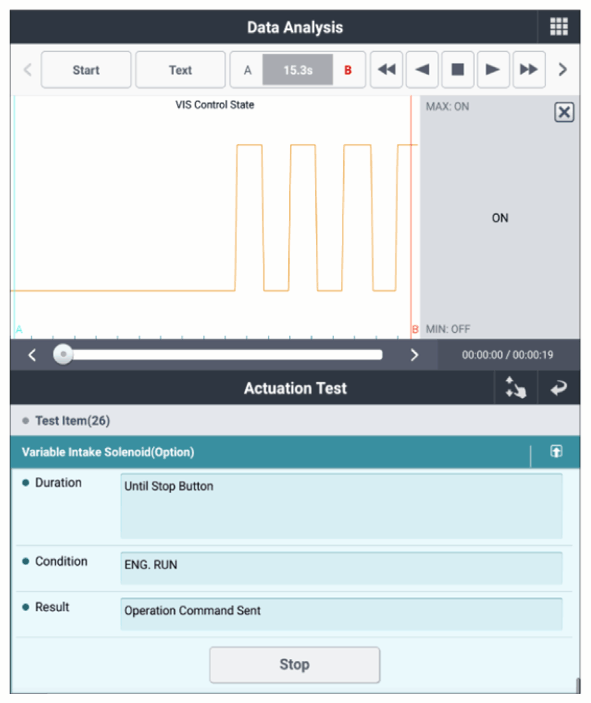

| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Figure |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "Inspect VIS" procedure.
| Inspect VIS | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|
VIS (component side) | 1 (power) | VIS (component side) | 2 (control) | Approx. 30.0 to 35.0Ω at 68°F (20° C) |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the VIS and go to "VERIFICATION OF REPAIR " procedure.
