Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

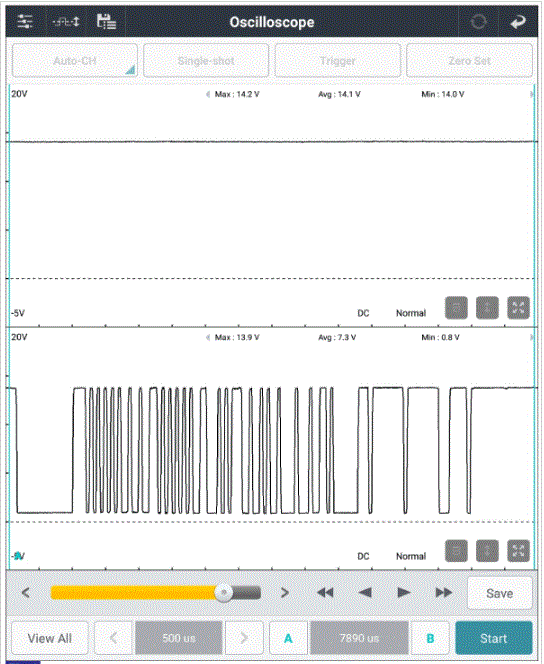

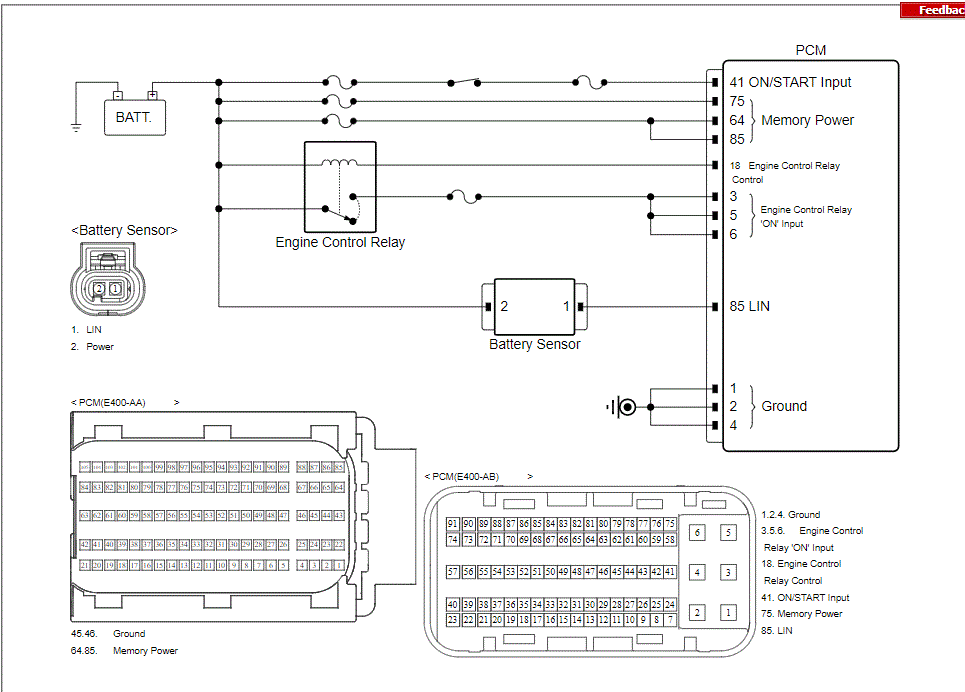

1. Disconnect the battery sensor connector. 2. Ignition "ON".	Battery sensor harness connector	2 (power)	Chassis ground	-	Fig.1
	Battery sensor harness connector	1 (LIN)	Chassis ground	-	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Go to "Verification Of Repair " procedure.

No Good

• Carefully re-do this troubleshooting guide steps.

• If no problems were found with the circuits or connectors, replace the battery sensor and then go to "Verification Of Repair " procedure.
