Overhead Console Lamp: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the socket (A) by rotating in the counterclockwise.

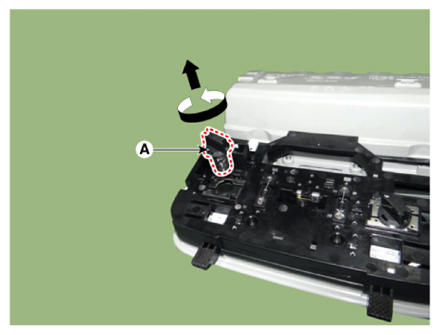

    G14563992Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the bulb.

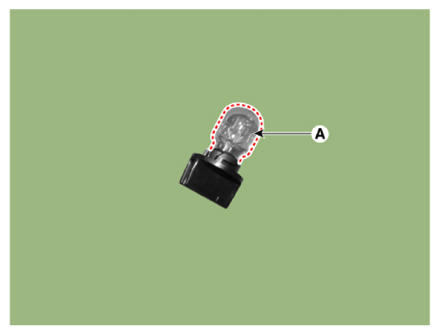

    G14563993Courtesy of KIA MOTORS AMERICA, INC.
