Neutralization Status Check
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

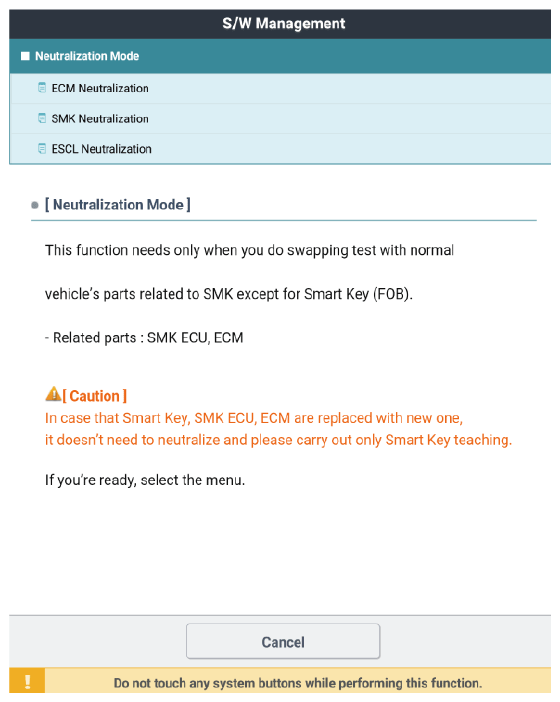

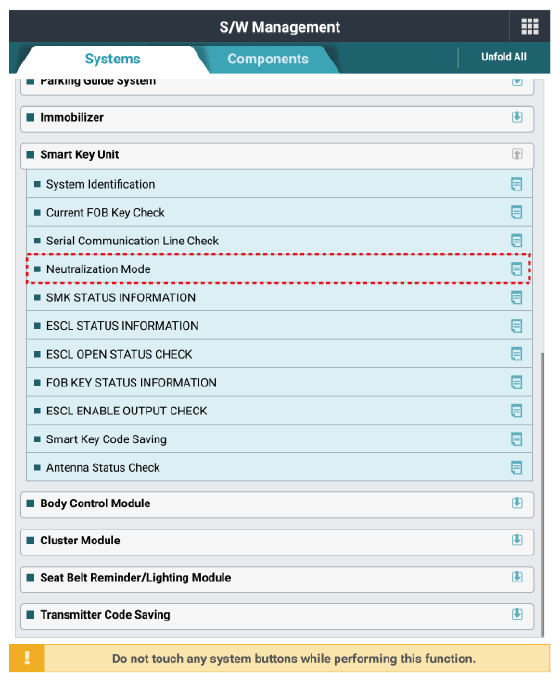

- After IG ON, select the "Neutralization mode".
