Components & Components Location: Components

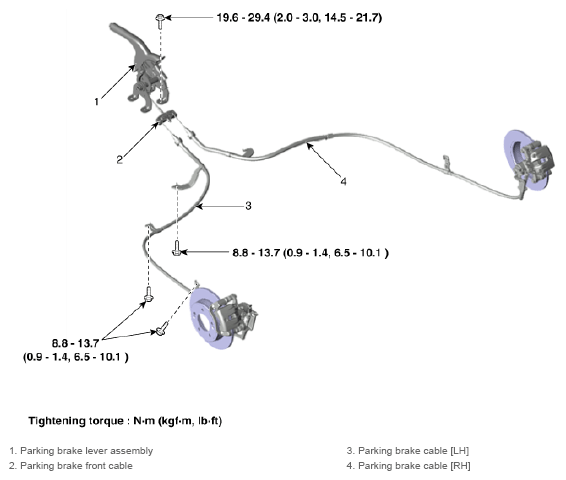

Fig 1: Parking Brake System Components Location With Torque Specification
G12831842Courtesy of KIA MOTORS AMERICA, INC.
