Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON", engine "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor parameters in "Current Data" with KDS.

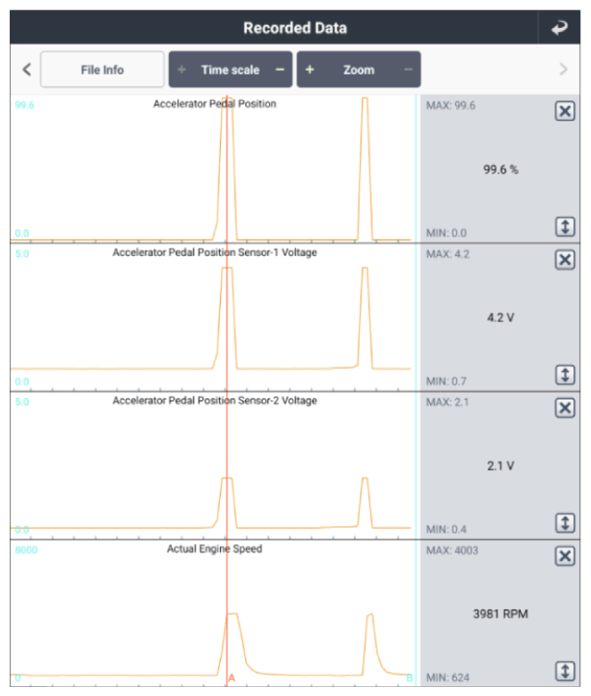

 Figure
G12851465Courtesy of KIA MOTORS AMERICA, INC.
  1. Accelerator pedal is depressed
  2. Accelerator pedal is not depressed

    Good

    No Good

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace the Accelerator Pedal Sensor and go to "VERIFICATION OF REPAIR " procedure.
