Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

[Gasoline 2.0]

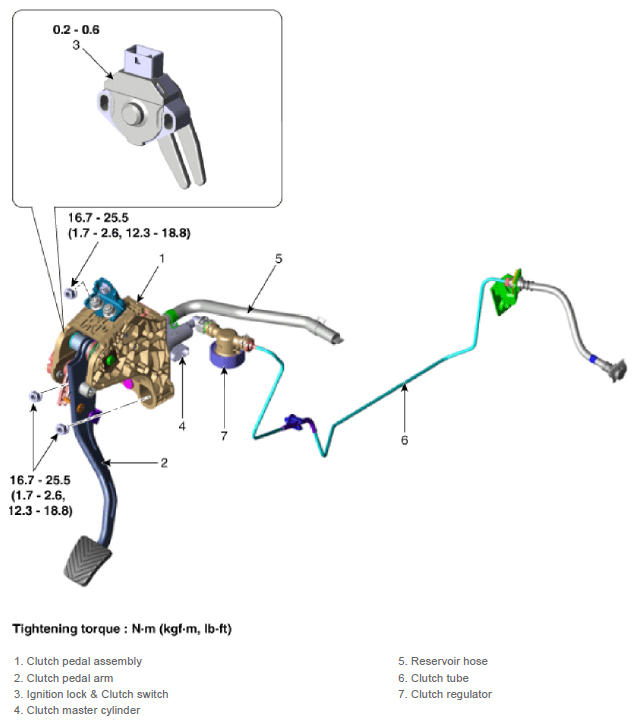

Fig 1: Clutch Regulator Components Location With Torque Specification (Gasoline 2.0)
G12830396Courtesy of KIA MOTORS AMERICA, INC.
