Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12853076Courtesy of KIA MOTORS AMERICA, INC.

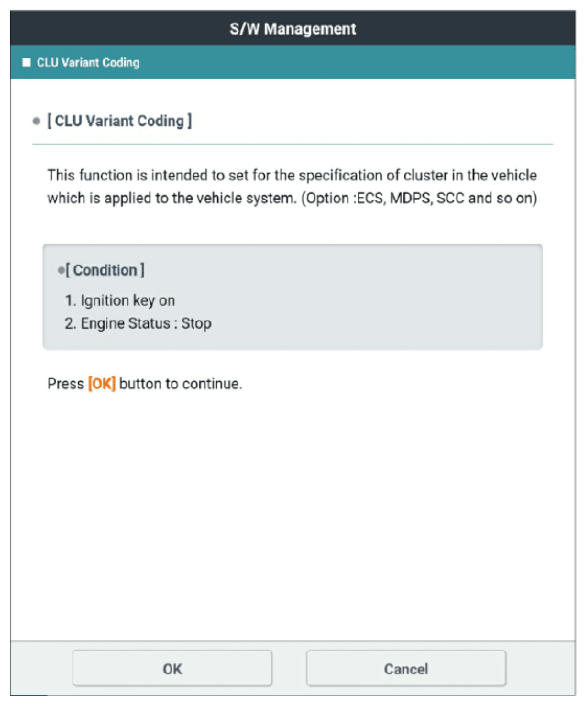

G12853077Courtesy of KIA MOTORS AMERICA, INC.

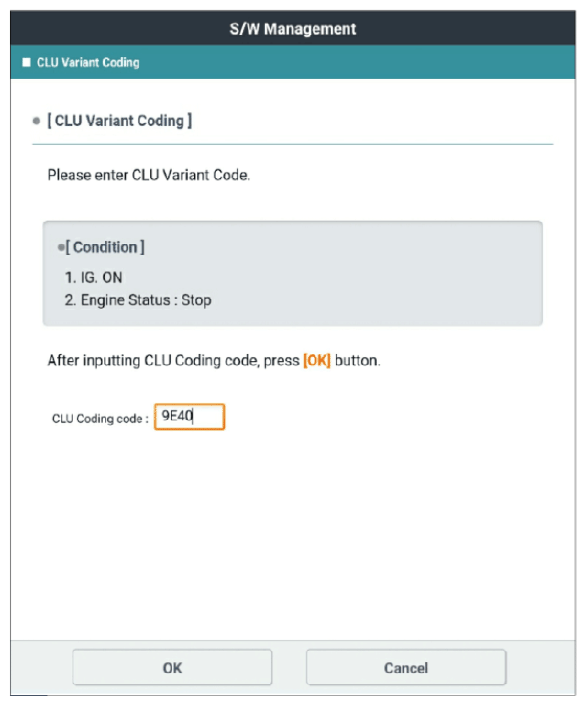

G12853078Courtesy of KIA MOTORS AMERICA, INC.

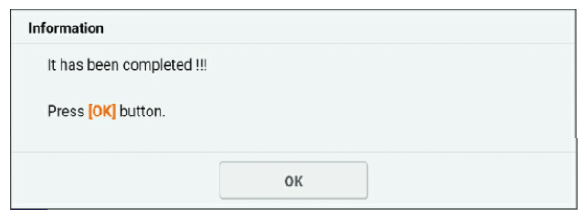

G12853079Courtesy of KIA MOTORS AMERICA, INC.

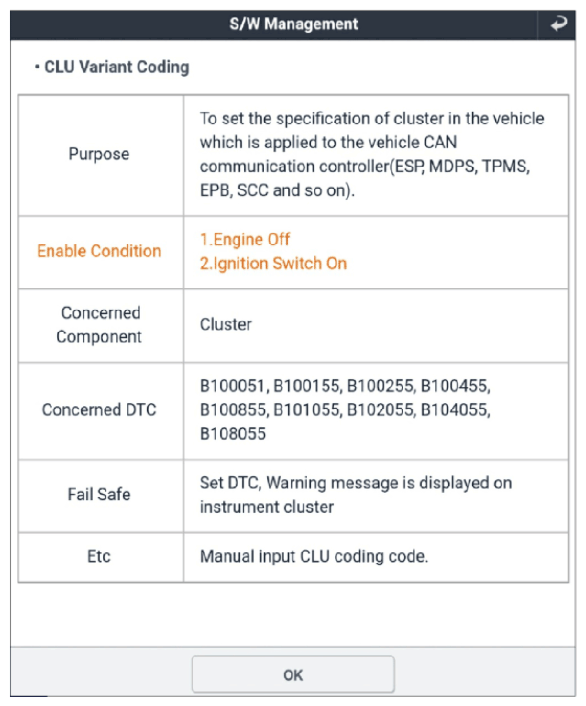

G12853080Courtesy of KIA MOTORS AMERICA, INC.

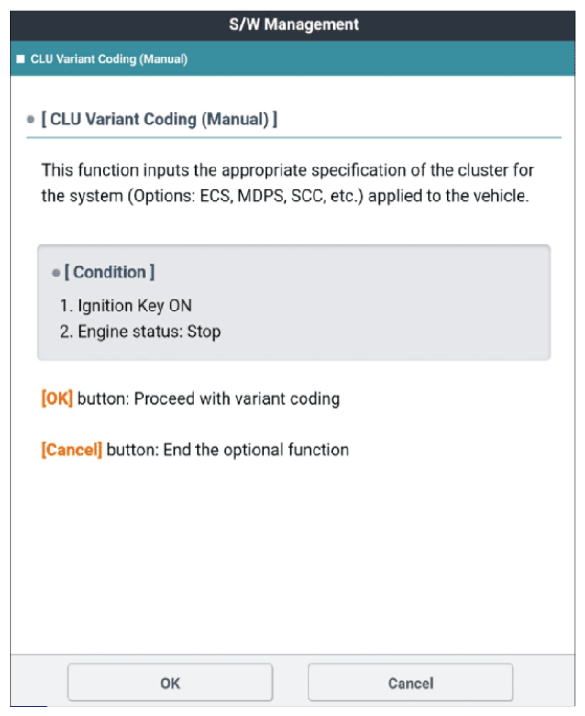

G12853081Courtesy of KIA MOTORS AMERICA, INC.

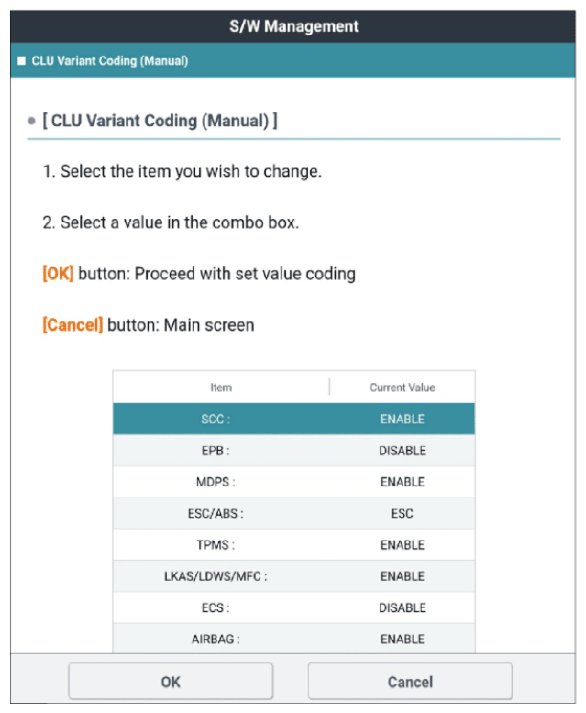

G12853082Courtesy of KIA MOTORS AMERICA, INC.

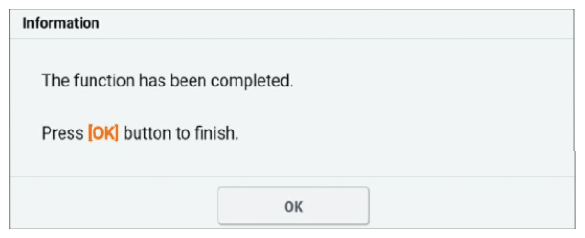

G12853083Courtesy of KIA MOTORS AMERICA, INC.
