Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat back cover.

    (Refer to Front Seat - "FRONT SEAT BACK COVER ")

  2. Remove the front seat cushion cover.

    (Refer to Front Seat - "FRONT SEAT CUSHION COVER ")

  3. Remove the side airbag (SAB) module.

    (Refer to Airbag Module - "SIDE AIRBAG (SAB) MODULE ")

  4. Remove the lumbar support assembly.

    (Refer to LUMBER SUPPORT SYSTEM Body Electrical System - "Lumbar Support System")

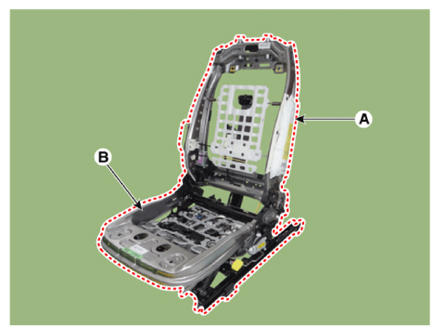

  5. After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

    Tightening torque:

    44.1 - 53.9 N.m (4.5 - 5.5 Kgf.m, 32.5 - 39.8 lb.ft)

    G14563588Courtesy of KIA MOTORS AMERICA, INC.
  6. To install, reverse the removal procedure.

    Information

    • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.

      (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")

    • Before service, be fully aware of precautions and service procedure relevant to air bag.

      (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
