Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the temperature control actuator.

    (Refer to Heater - "TEMPERATURE CONTROL ACTUATOR ")

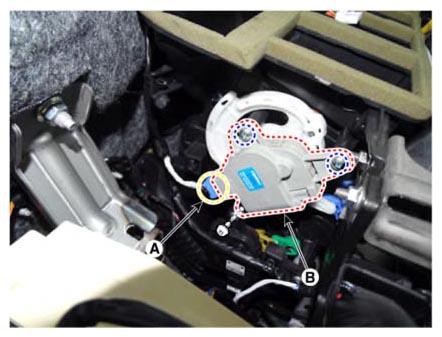

  3. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G14557215Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
