Repair Procedures: Replacement
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")

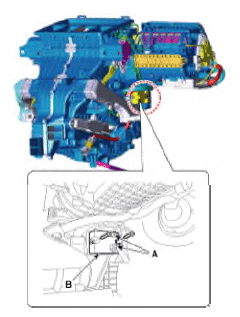

- Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.
- Install in the reverse order of removal.
