Components And Components Location: Components: Notes

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

[RADIO/MP3/Bluetooth/SXM]

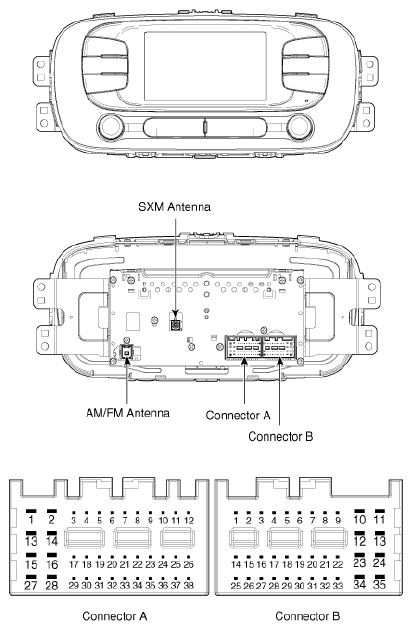

Fig 1: Audio Unit Components Location
G12820776Courtesy of KIA MOTORS AMERICA, INC.
