Repair Procedures: Removal

Separate the engine room junction block.

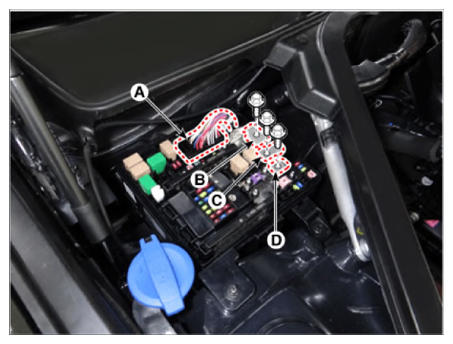

Disconnect the front control connector (A).
Disconnect the starter motor ground cable (B).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
Disconnect the engine wiring cable (C).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Disconnect the alternator ground cable (D).

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

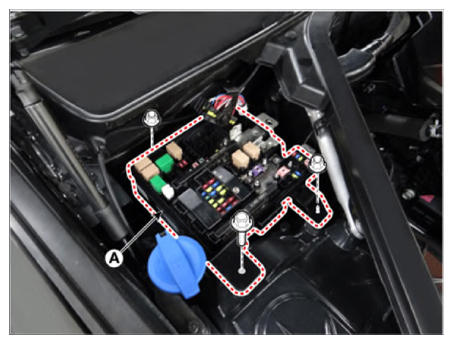

Separate the engine room junction block (A) by loosening the bolt and nuts.
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

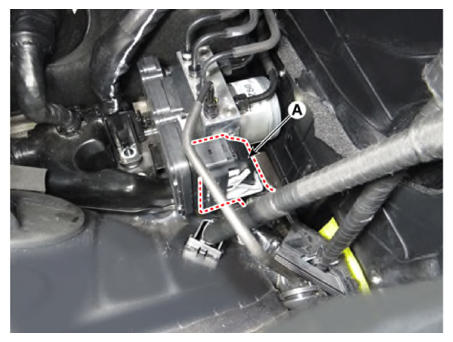

Disconnect the ESC control module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

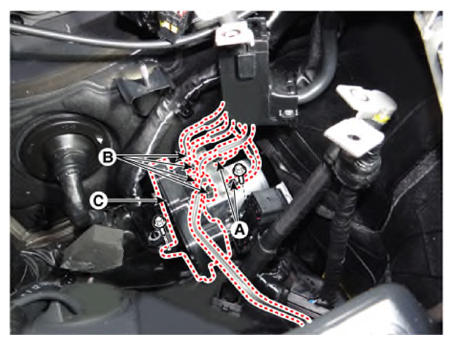

Disconnect the brake pipes by loosening the flare nuts (A, B).
Tightening torque

Nuts (A): 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Nuts (B): 13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)
Remove the ESC control module (HECU) and bracket (C) by loosening the bolts.
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.4 - 21.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the bracket from the ESC control module (HECU) by loosening the bolts.
