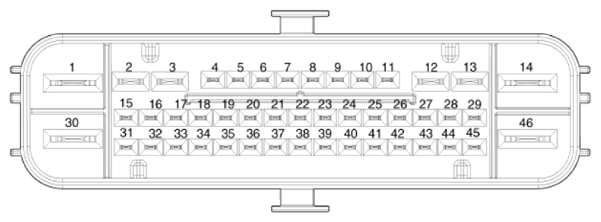

Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

Pin No	Description
1	BATTTERY (+): PUMP MOTOR POWER
2	MOTOR GROUND (REAR RIGHT)
3	MOTOR POWER (REAR RIGHT)
4	IGNITION 1
5	-
6	POWER TRAIN CAN BUS LINE (HIGH)
7	POWER TRAIN CAN BUS LINE (LOW)
8	-
9	-
10	-
11	VACUUM PUMP SIGNAL OUTPUT
12	MOTOR GROUND (REAR LEFT)
13	MOTOR PWER (REAR LEFT)
14	PUMP MOTOR GROUND
15	-
16	-
17	-
18	EPB SWITCH SIGNAL 1 - APPLY
19	EPB SWITCH SIGNAL 2 - APPLY
20	WHEEL SPEED SENSOR SIGNAL (FRONT RIGHT) (GROUND)
21	WHEEL SPEED SENSOR POWER (FRONT RIGHT)
22	-
23	VACUUM PUMP SIGNAL INPUT
24	CHASSIS CAN BUS LINE (HIGH)
25	CHASSIS CAN BUS LINE (LOW)
26	ESC ON/OFF SWITCH SIGNAL
27	WHEEL SPEED SENSOR SIGNAL (REAR LEFT) (GROUND)
28	WHEEL SPEED SENSOR POWER (REAR LEFT)
29	WHEEL SPEED SENSOR SIGNAL (REAR RIGHT) (GROUND)
30	BATTTERY (+): SOLENOID, EPB
31	-
32	BRAKE LIGHT SWITCH SIGNAL
33	-
34	EPB SWITCH SIGNAL 3 - RELEASE
35	EPB SWITCH SIGNAL 4 - RELEASE
36	-
37	WHEEL SPEED SENSOR OUTPUT (REAR RIGHT)
38	-
39	-
40	VACUUM PUMP MONITORING INPUT
41	-
42	WHEEL SPEED SENSOR SIGNAL (FRONT LEFT) (GROUND)
43	WHEEL SPEED SENSOR POWER (FRONT LEFT)
44	-
45	WHEEL SPEED SENSOR POWER (REAR RIGHT)
46	GROUND
