Circuit Diagram

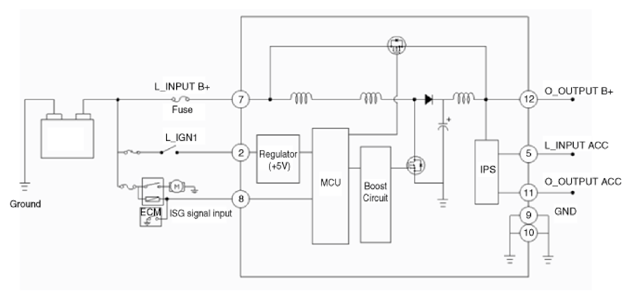

[200W]
Courtesy of KIA MOTORS AMERICA, INC.

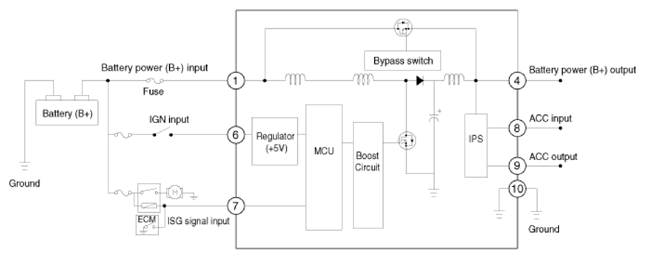

[400W]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
