Circuit Inspection

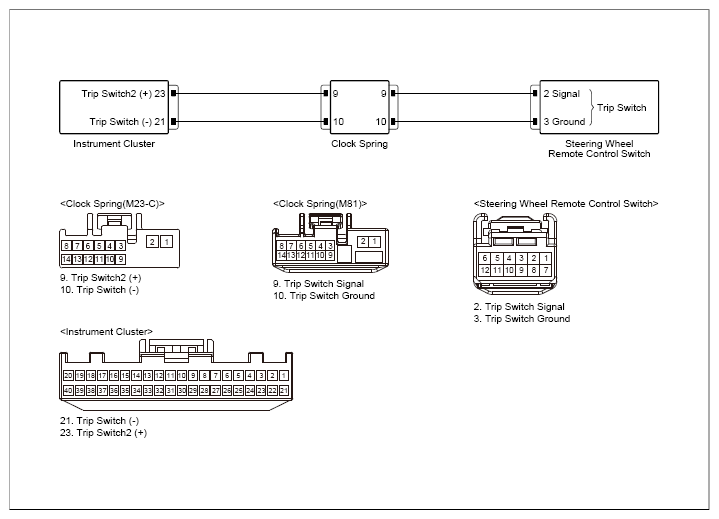

G13133940

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component and cluster. Ignition "ON".	Steering Wheel Remote Switch connector	2 (signal)	Chassis ground	-	Approx. 0V
	Steering Wheel Remote Switch connector	3 (ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component and cluster.	Steering Wheel Remote Switch connector	2 (signal)	Cluster connector	23 (TRIP switch2)	Approx. below 1Ω
	Steering Wheel Remote Switch connector	3 (ground)	Cluster connector	21 (TRIP switch -)	Approx. below 1Ω
	Steering Wheel Remote Switch connector	2 (signal)	Chassis ground	-	∞ (Infinite)Ω
	Steering Wheel Remote Switch connector	3 (ground)	Chassis ground	-	∞ (Infinite)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the Cruise Remote Switch and go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
