Repair Procedures: Replacement

Remove the ignition coil.
(Refer to Engine Electrical System - "IGNITION COIL ")
Using a spark plug wrench, remove the spark plug (A).
Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 Ib.ft)

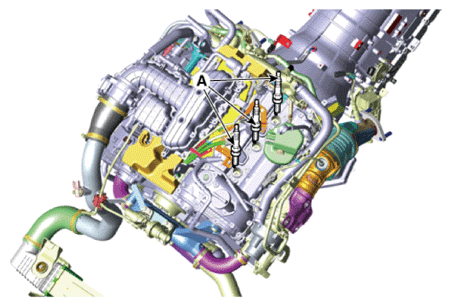

[Bank 1]

Courtesy of KIA MOTORS AMERICA, INC.

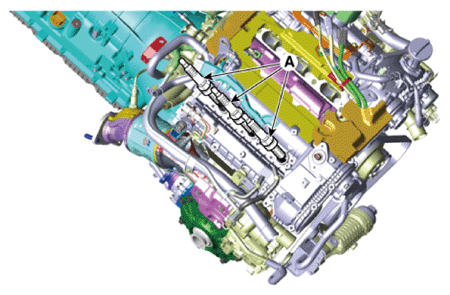

[Bank 2]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
