Repair Procedures: Replacement

Remove the rear wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

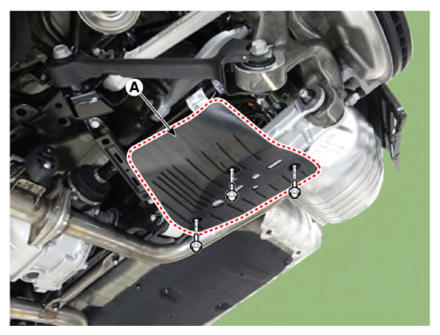

Remove the lower arm cover (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

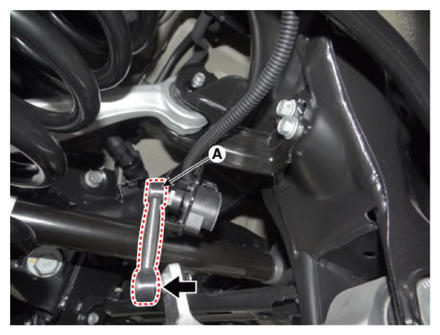

Disconnect the height sensor link (A).

Courtesy of KIA MOTORS AMERICA, INC.

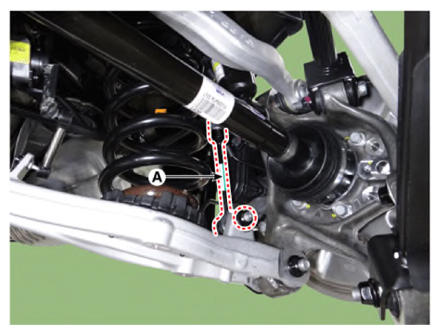

Separate the stabilizer link (A) from the lower arm.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G13144402

Courtesy of KIA MOTORS AMERICA, INC.

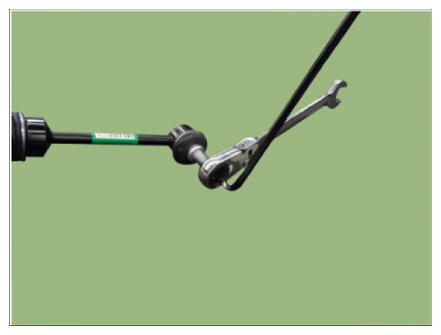

NOTE: Using a hex wrench, fix the end of stabilizer link when loosening the nut.

G13144403

Courtesy of KIA MOTORS AMERICA, INC.

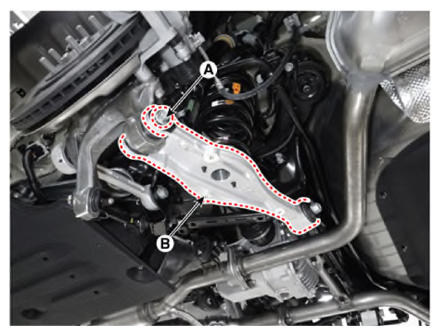

Separate the lower arm (B) by loosening the bolt and nut (A).
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Set up the jack under the lower arm in order to remove the shock absorber in no-load condition.

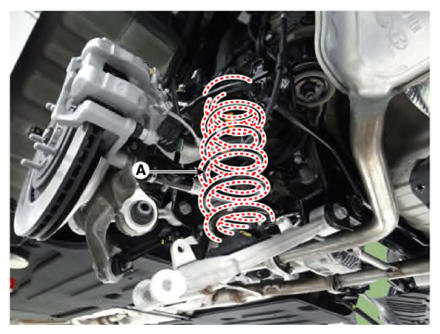

Remove the rear coil spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

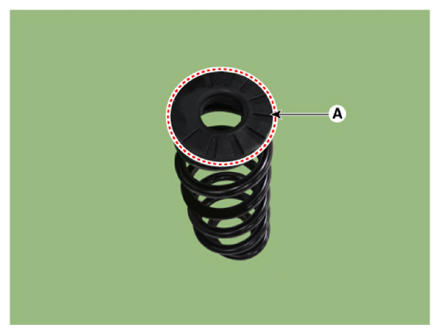

Remove the spring upper pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

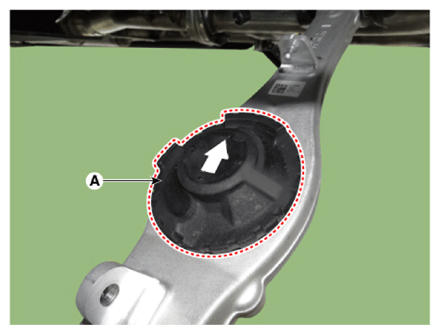

Remove the spring lower pad (A) from the lower arm.

G13144407

Courtesy of KIA MOTORS AMERICA, INC.

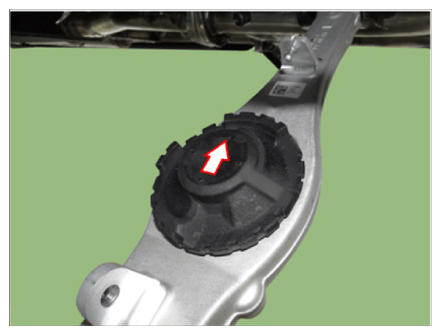

NOTE: When installing, make sure direction of the arrow at the lower arm shown below.

G13144408

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Check the rear alignment.
(Refer to Rear Suspension System - "REAR ALIGNMENT ")
