Repair Procedures: Replacement
- Remove the rear wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

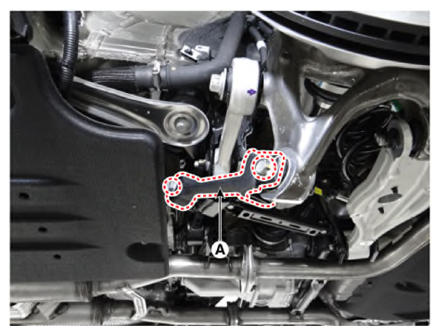

- Remove the trailing arm (A) by loosening the bolts and nuts.
Tightening torque:
Trailing arm to rear axle: 117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb.ft)
Trailing arm to cross member: 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)
- Install in the reverse order of removal.
- Check the rear alignment.
(Refer to Rear Suspension System - "REAR ALIGNMENT ")
