Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

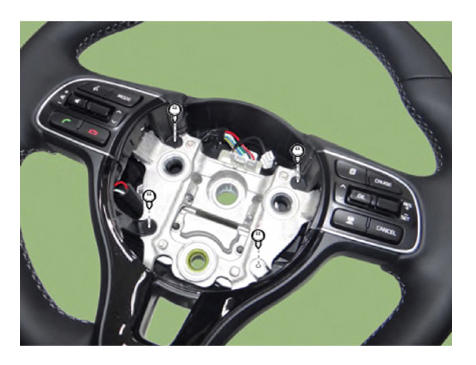

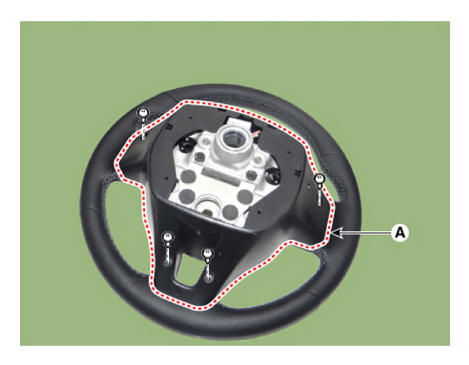

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13206509Courtesy of KIA MOTORS AMERICA, INC.
    G13206510Courtesy of KIA MOTORS AMERICA, INC.

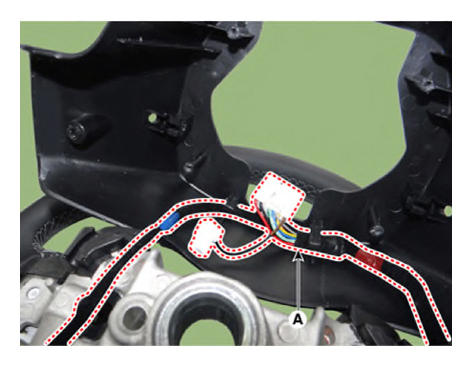

  4. Remove the wiring connector (A) from the steering back cover.
    G13206511Courtesy of KIA MOTORS AMERICA, INC.

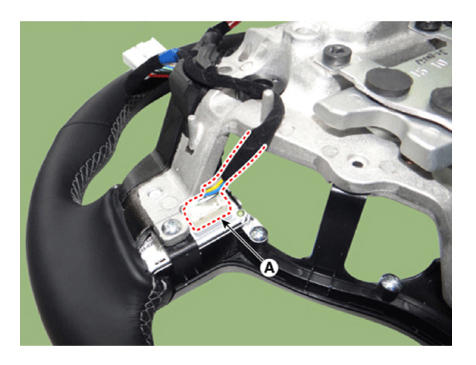

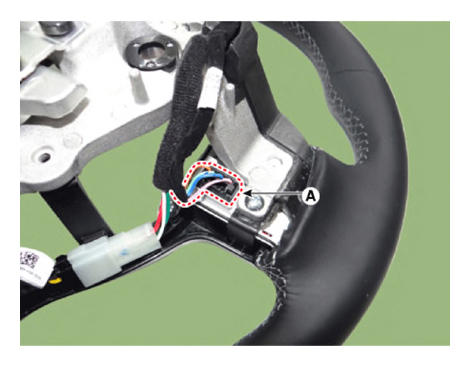

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G13206512Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13206513Courtesy of KIA MOTORS AMERICA, INC.

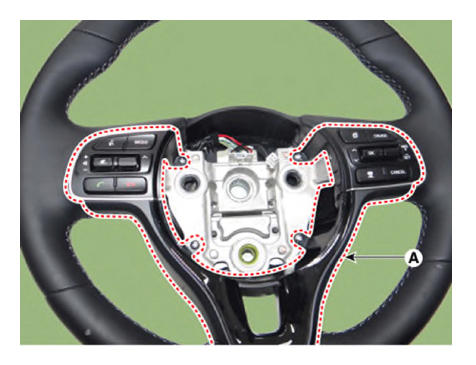

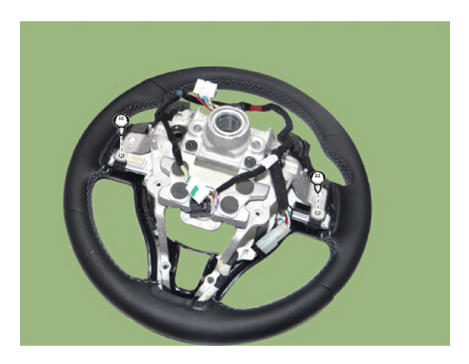

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13206514Courtesy of KIA MOTORS AMERICA, INC.
    G13206515Courtesy of KIA MOTORS AMERICA, INC.

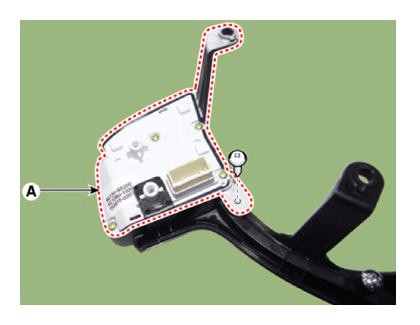

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [RH]

    G13206516Courtesy of KIA MOTORS AMERICA, INC.
