Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

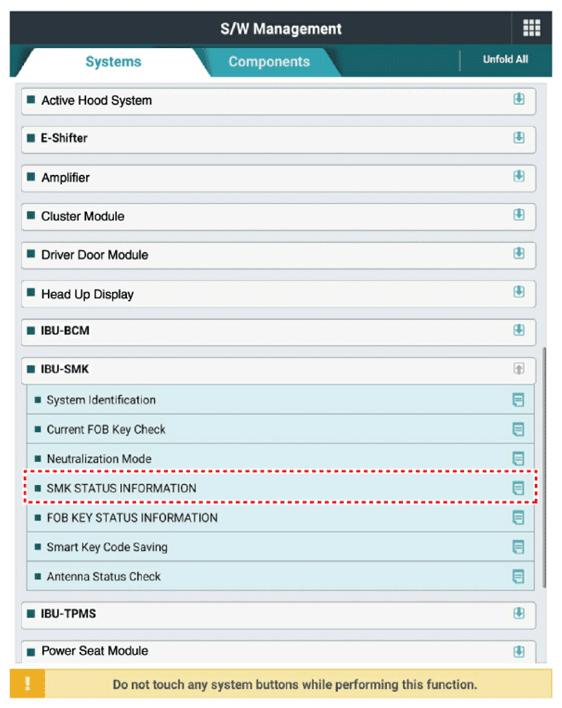

    G13204878Courtesy of KIA MOTORS AMERICA, INC.

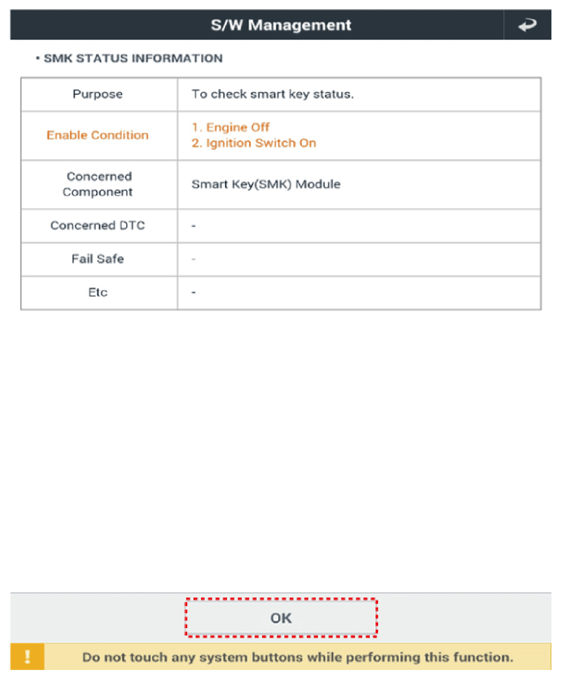

    G13204879Courtesy of KIA MOTORS AMERICA, INC.

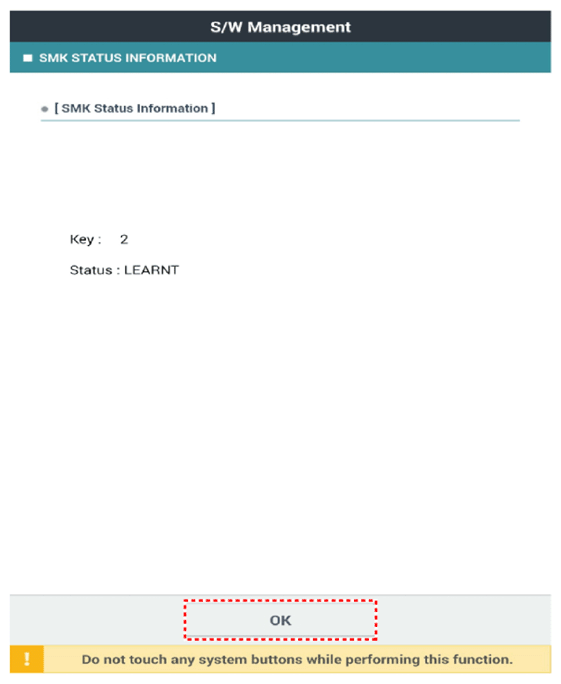

    G13204880Courtesy of KIA MOTORS AMERICA, INC.
