Smart Key Unit

NOTE:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative battery terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")
Remove the body control module (BCM).
(Refer to Body Electrical System - "BODY CONTROL MODULE (BCM) ")

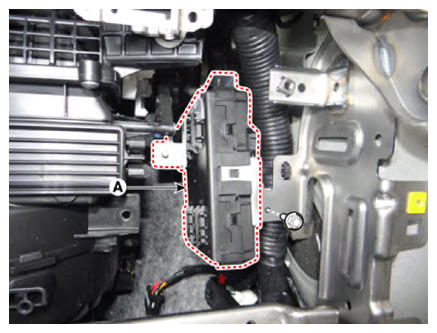

Remove the smart key unit (A) after loosening the mounting bolt.

Courtesy of KIA MOTORS AMERICA, INC.

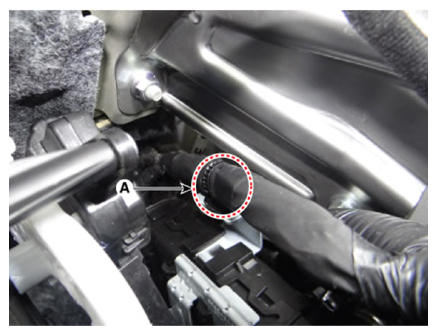

Remove the smart key unit wiring harness mounting clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

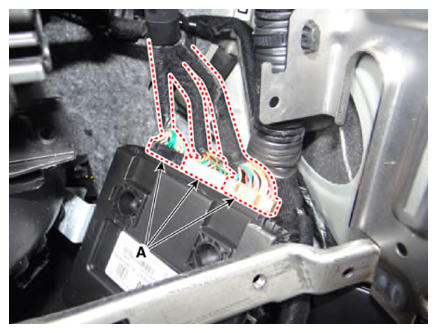

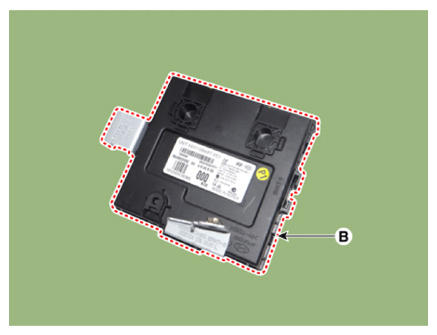

Remove the smart key unit (B) after disconnecting the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
