Tailgate Open Switch

  1. Disconnect the negative battery terminal.
  2. Remove the tailgate latch.

    (Refer to Body - "TAILGATE LATCH ")

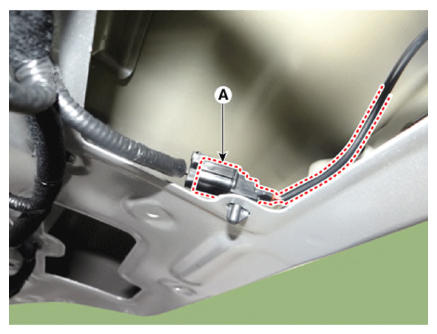

  3. Disconnect the tailgate open switch connector (A).
    G13204847Courtesy of KIA MOTORS AMERICA, INC.

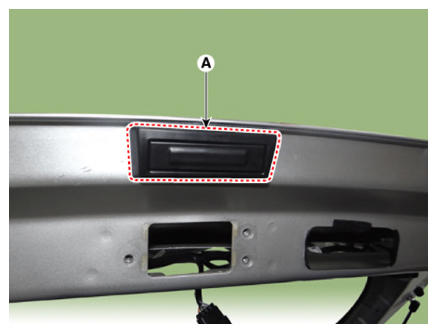

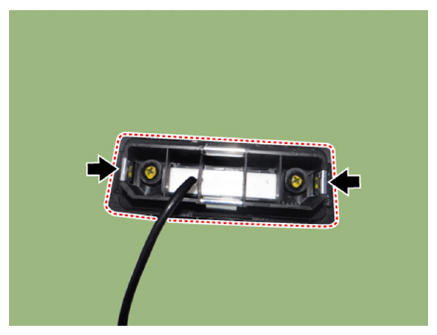

  4. Remove the tailgate open switch assembly (A) after pushing mounting hooks.
    G13204848Courtesy of KIA MOTORS AMERICA, INC.
    G13204849Courtesy of KIA MOTORS AMERICA, INC.
