Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

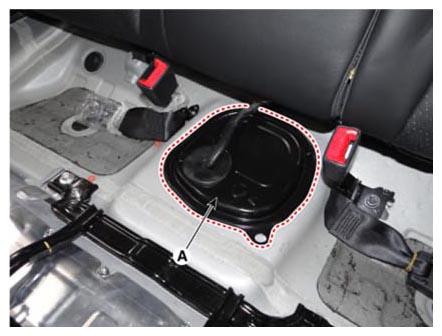

  3. Fuel pump service cover (A).
    G12998373Courtesy of KIA MOTORS AMERICA, INC.

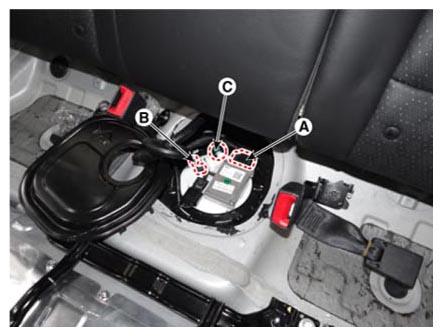

  4. Remove the fuel pump control module connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick-connector. (C).
    G12998374Courtesy of KIA MOTORS AMERICA, INC.

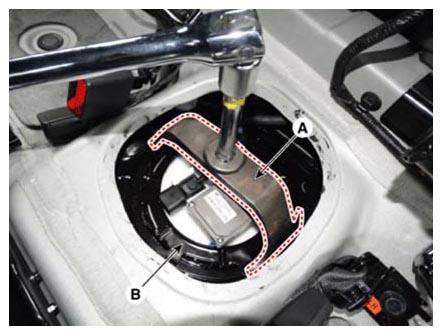

  7. Remove the fuel pump plate cover (B) by using the special service tool (A) [SST NO.:09310-B8100].
    G12998375Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the fuel pump (A).
G12998376Courtesy of KIA MOTORS AMERICA, INC.
