Neutralization Status Check

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

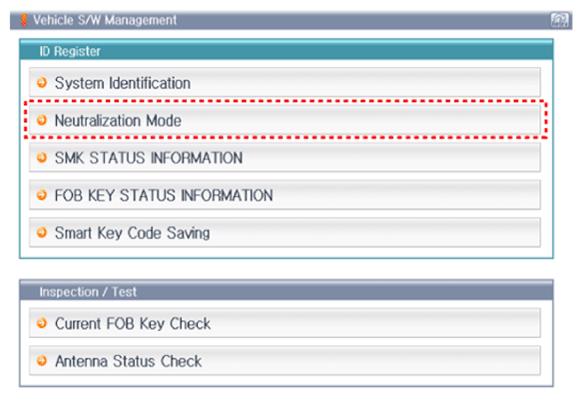

G12730156Courtesy of HYUNDAI MOTOR AMERICA

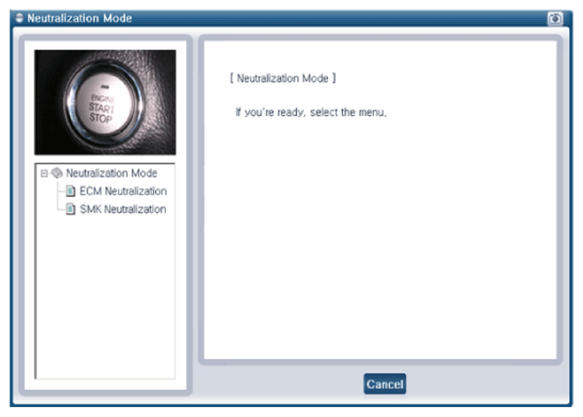

G12730157Courtesy of HYUNDAI MOTOR AMERICA

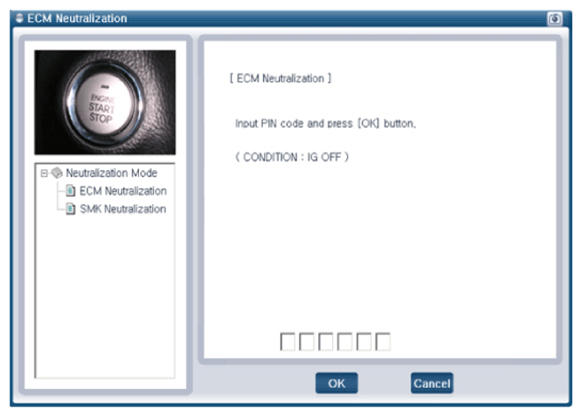

G12730158Courtesy of HYUNDAI MOTOR AMERICA

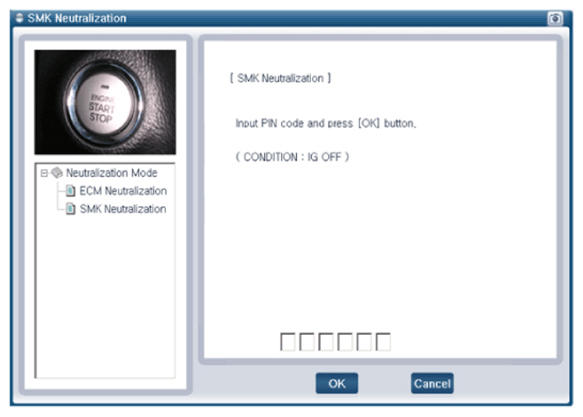

G12730159Courtesy of HYUNDAI MOTOR AMERICA
