Neutralization Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

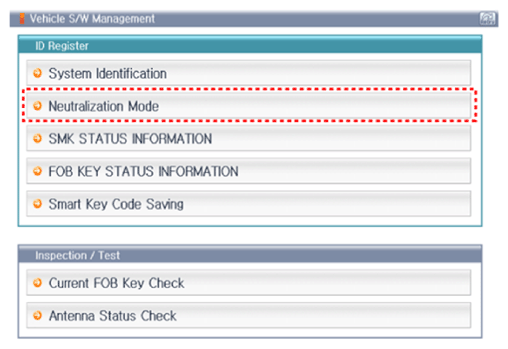

    G12704272Courtesy of KIA MOTORS AMERICA, INC.

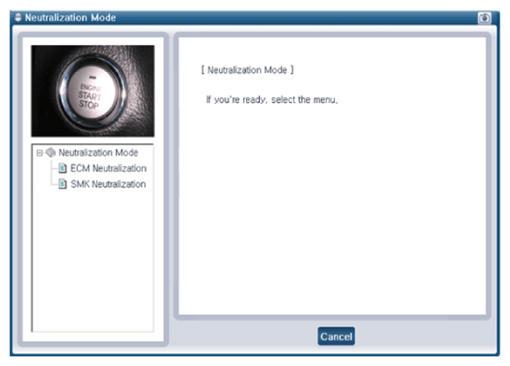

    G12704273Courtesy of KIA MOTORS AMERICA, INC.

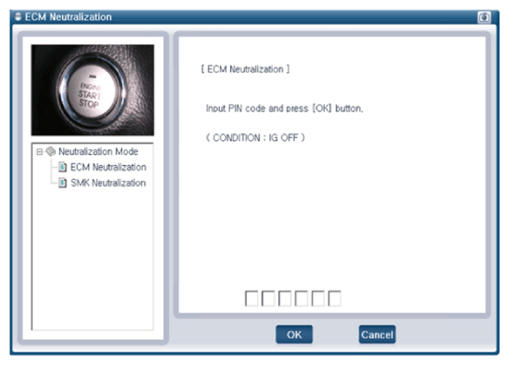

    G12704274Courtesy of KIA MOTORS AMERICA, INC.

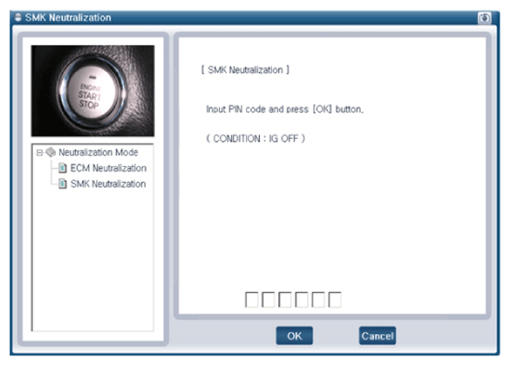

    G12704275Courtesy of KIA MOTORS AMERICA, INC.
