Repair Procedures: Disassembly

  1. Disconnect the negative battery cable.
  2. Remove the Steering Wheel Assembly.

    (Refer to Steering System - " STEERING WHEEL  ")

  3. Loosen the screw and then remove the steering back cover.

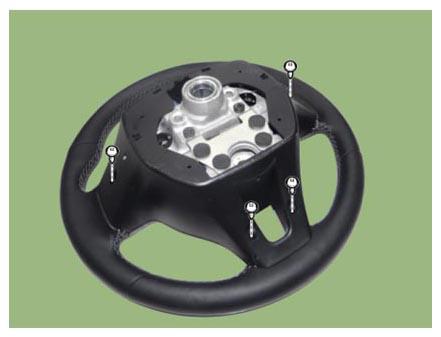

    G13004198Courtesy of KIA MOTORS AMERICA, INC.

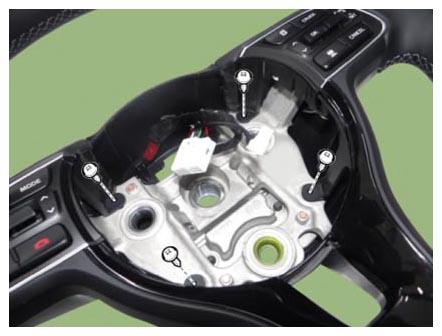

    G13004199Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the Remote Control Switch Connector.

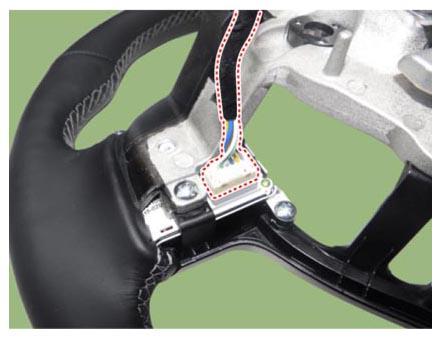

    G13004200Courtesy of KIA MOTORS AMERICA, INC.

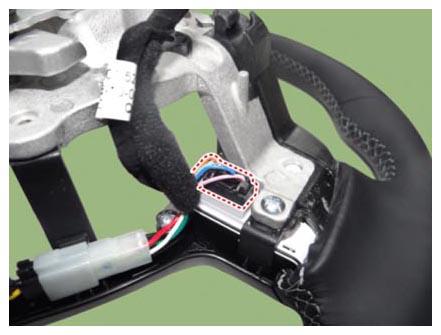

    G13004201Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the screw and then remove the remote control switch.

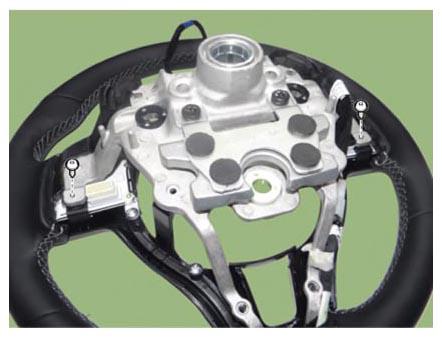

    G13004202Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the heated pad connector.

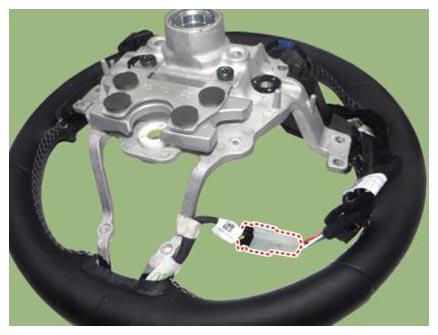

    G13004203Courtesy of KIA MOTORS AMERICA, INC.
  7. Loosen the screw and then remove the remote control switch from the bezel.

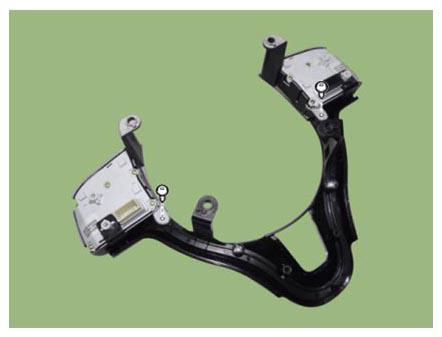

    G13004204Courtesy of KIA MOTORS AMERICA, INC.
  8. Loosen the bolts and then remove the damper.

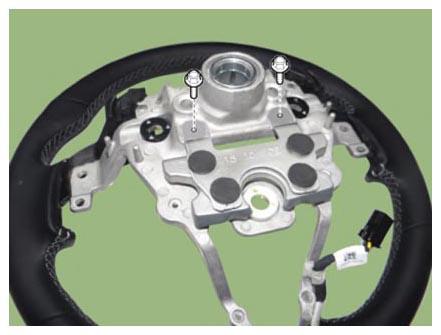

    G13004205Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
