Driver Power Window Switch

1. Disconnect the negative (-) battery terminal.
2. Remove the driver front door trim.

   (Refer to Body - " FRONT DOOR TRIM  ")

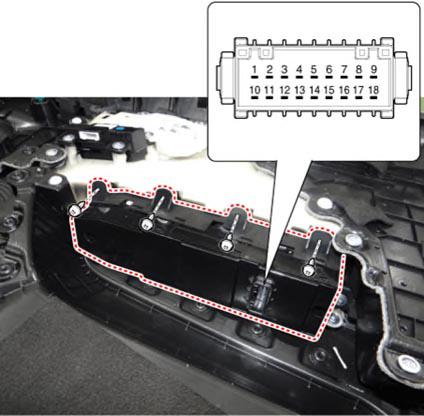

3. Disconnect the power window switch connector from the door trim.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Check for continuity between the terminals in each switch position as shown below.

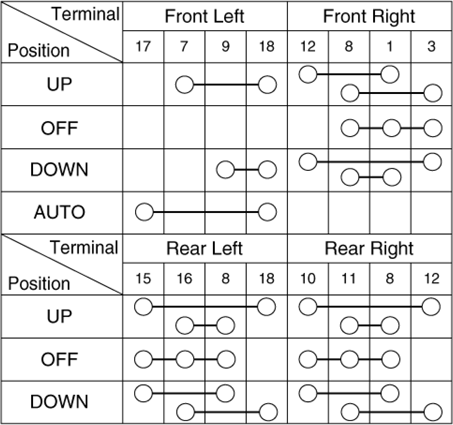

   [Power Window Switch Inspection]

Courtesy of KIA MOTORS AMERICA, INC.

[Power Door Lock Switch Inspection]

Courtesy of KIA MOTORS AMERICA, INC.

[Power Window Lock Switch Inspection]

Courtesy of KIA MOTORS AMERICA, INC.
