Liftgate Open Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate latch.

    (Refer to Body - " LIFTGATE LATCH  ")

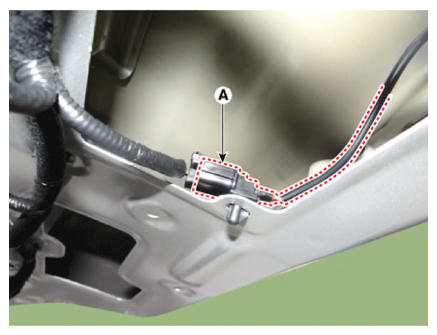

  3. Disconnect the liftgate open switch connector (A).
    G12996737Courtesy of KIA MOTORS AMERICA, INC.

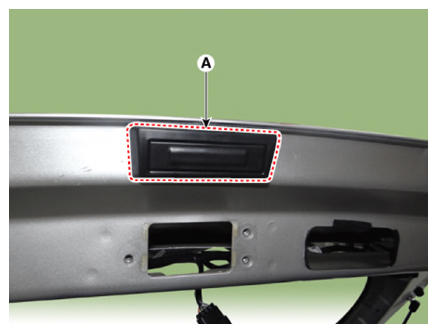

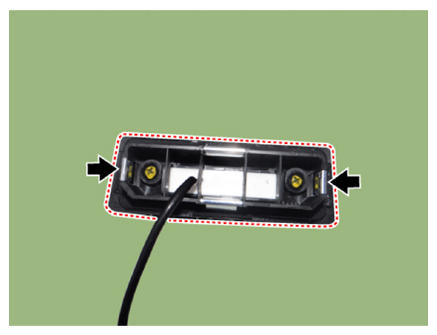

  4. Remove the liftgate open switch assembly (A) after pushing mounting hooks.
G12996738Courtesy of KIA MOTORS AMERICA, INC.
G12996739Courtesy of KIA MOTORS AMERICA, INC.
