Components & Components Location: Components

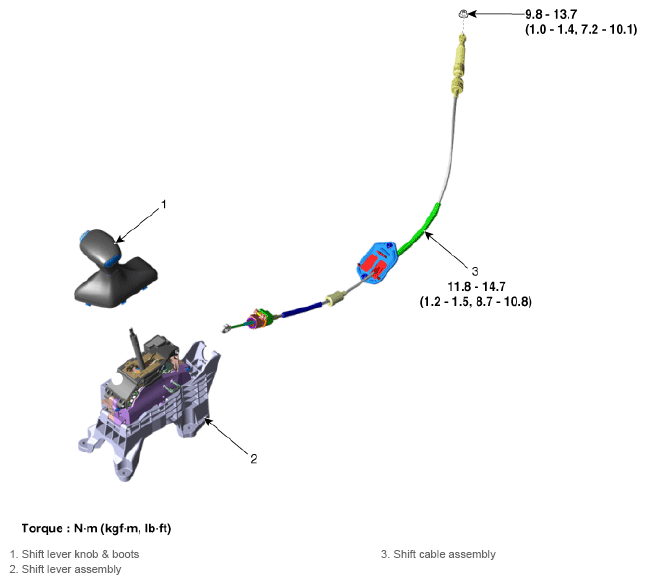

Fig 1: Shift Cable Components Location With Torque Specification
G12696568Courtesy of KIA MOTORS AMERICA, INC.
