Smart Key Code Saving

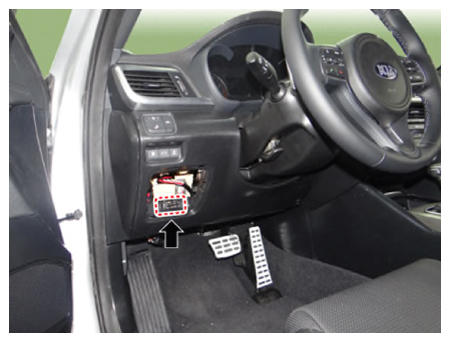

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, and turn on the KDS.
    G12921316Courtesy of KIA MOTORS AMERICA, INC.

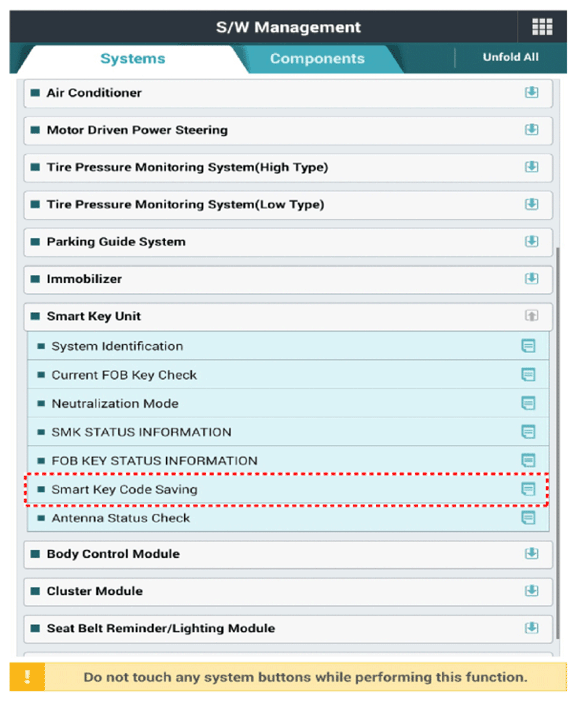

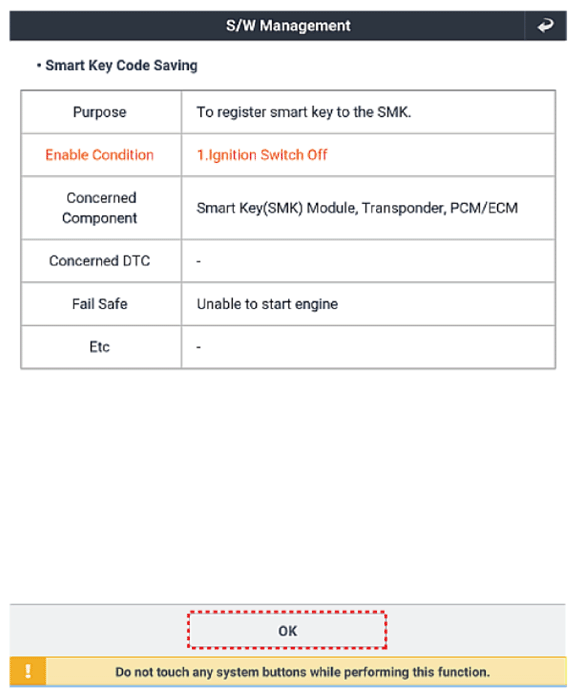

  2. Select the vehicle model and then do "Smart key code saving".
    G12921317Courtesy of KIA MOTORS AMERICA, INC.
    G12921318Courtesy of KIA MOTORS AMERICA, INC.

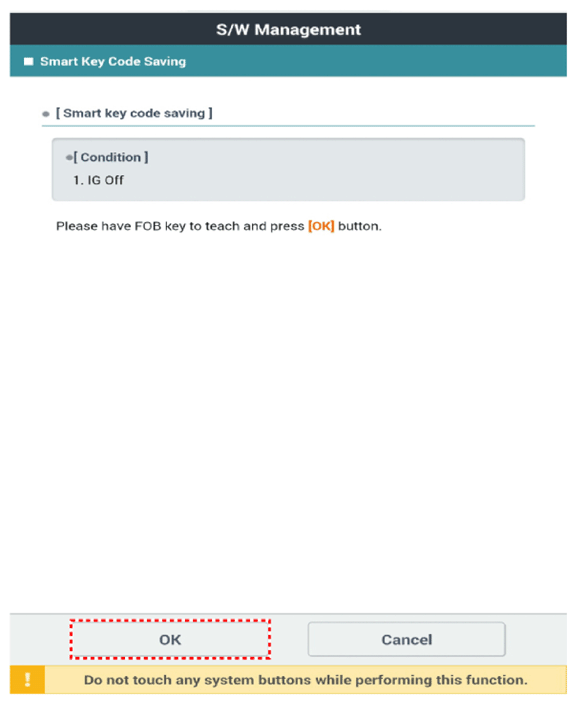

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in the illustration below.
    G12921319Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

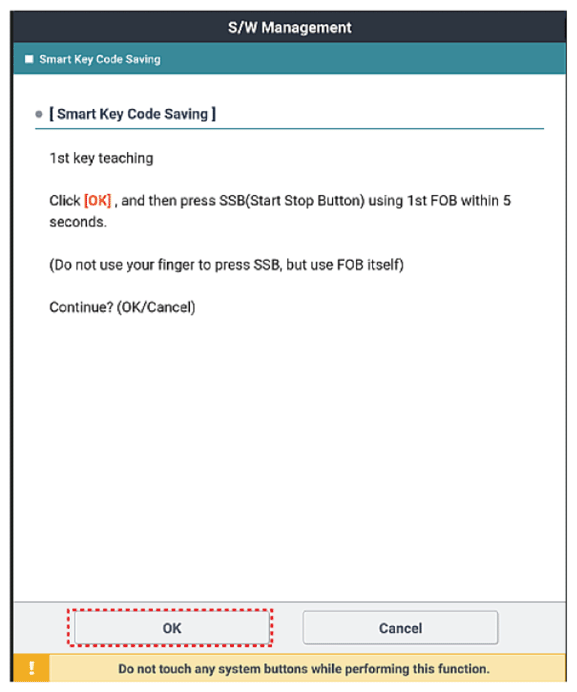

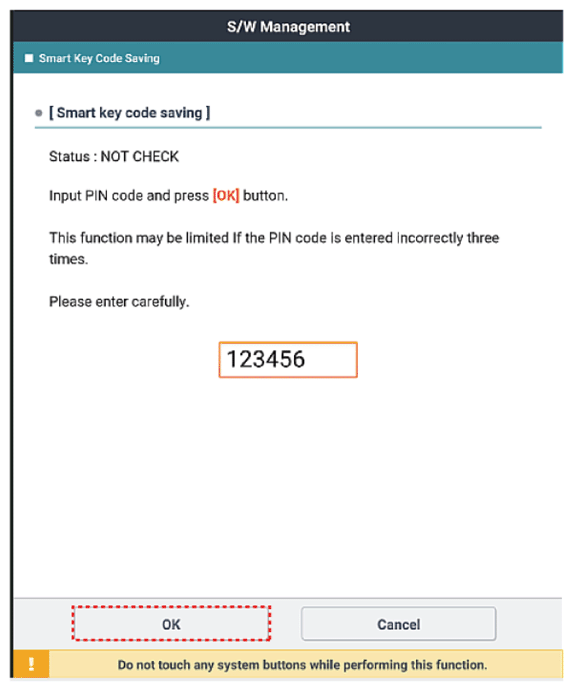

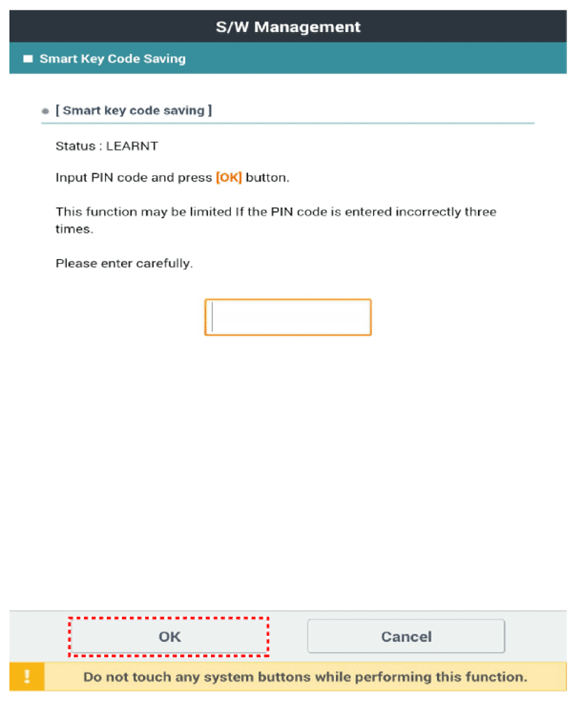

  5. Input the "Pin code" for first key teaching.
    G12921320Courtesy of KIA MOTORS AMERICA, INC.
    G12921321Courtesy of KIA MOTORS AMERICA, INC.
    G12921322Courtesy of KIA MOTORS AMERICA, INC.

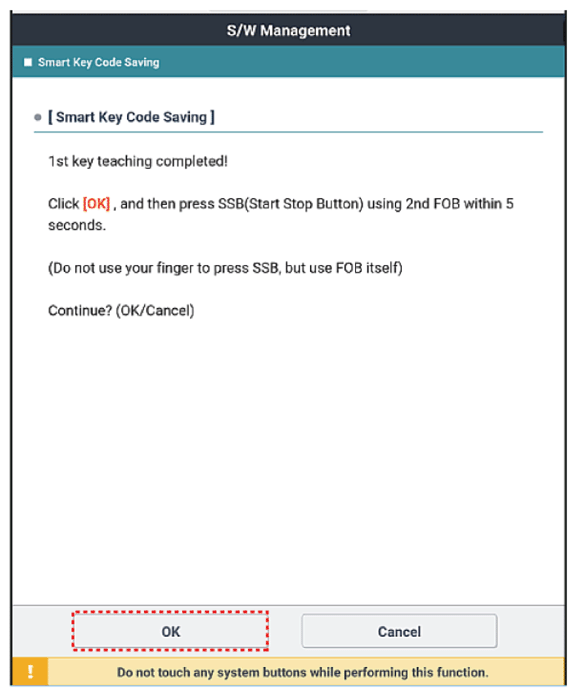

  6. Confirm the message "First key teaching completed".
    G12921323Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G12921324Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G12921325Courtesy of KIA MOTORS AMERICA, INC.
    G12921326Courtesy of KIA MOTORS AMERICA, INC.

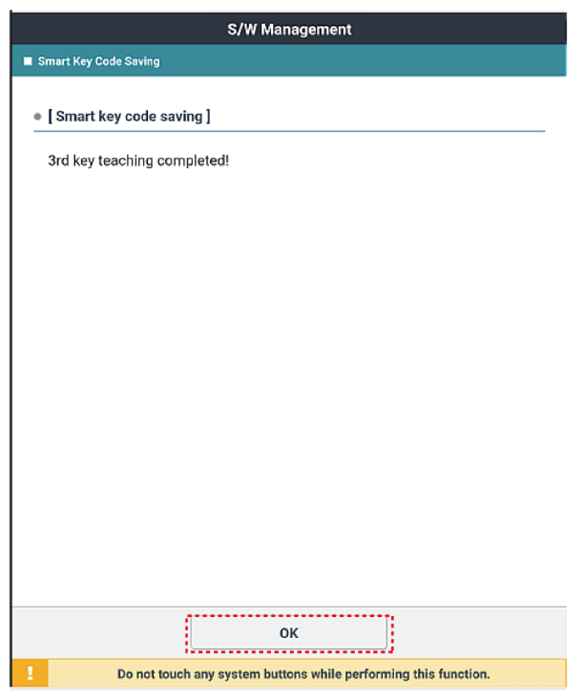

  9. Then the screen will be as shown in the illustration below when key teaching process is completed.
G12921327Courtesy of KIA MOTORS AMERICA, INC.
