Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

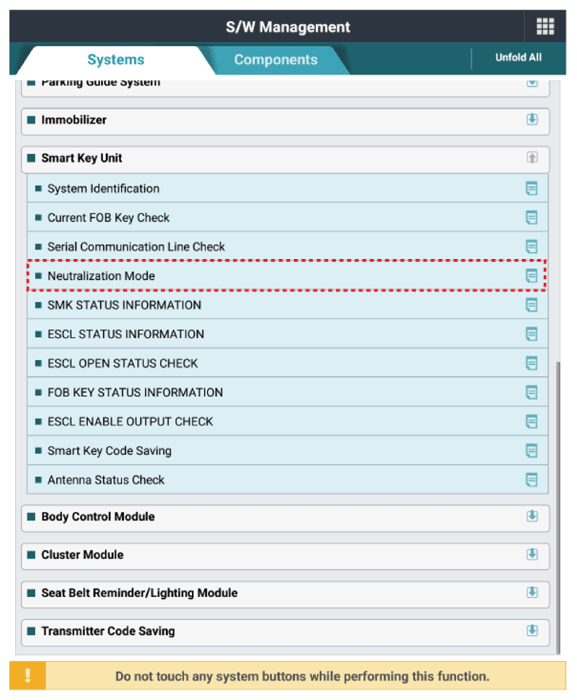

G12921370

Courtesy of KIA MOTORS AMERICA, INC.

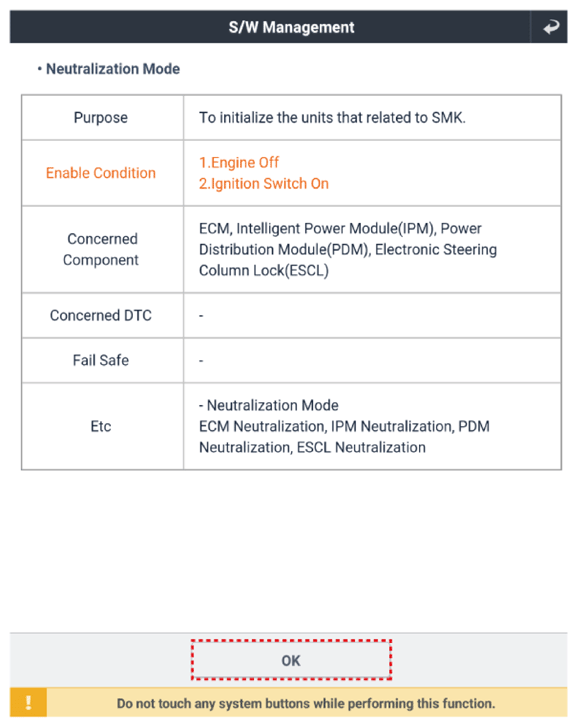

G12921371

Courtesy of KIA MOTORS AMERICA, INC.

G12921372

Courtesy of KIA MOTORS AMERICA, INC.

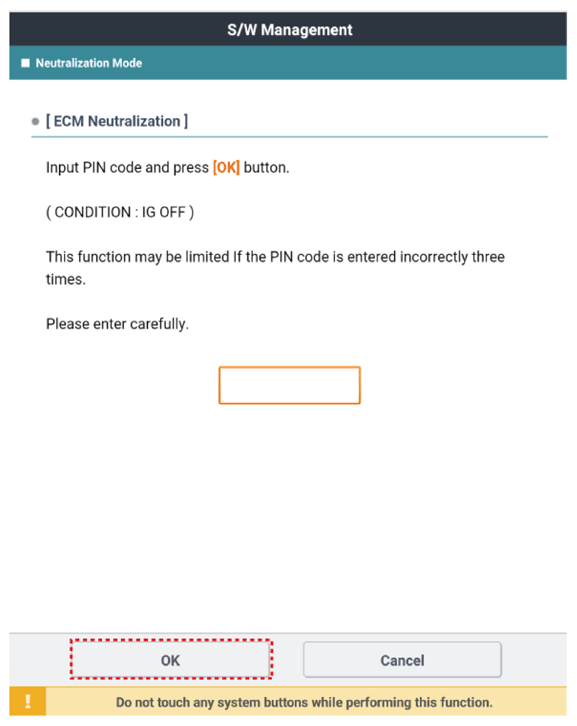

G12921373

Courtesy of KIA MOTORS AMERICA, INC.

G12921374

Courtesy of KIA MOTORS AMERICA, INC.

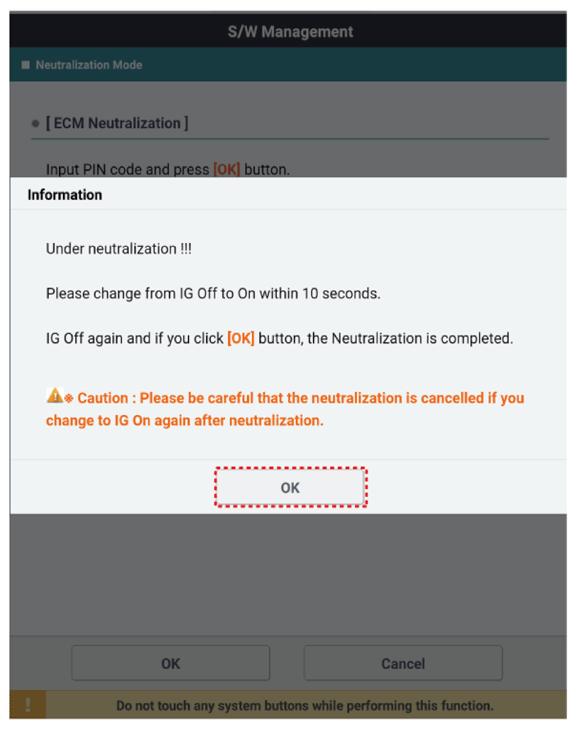

G12921375

Courtesy of KIA MOTORS AMERICA, INC.

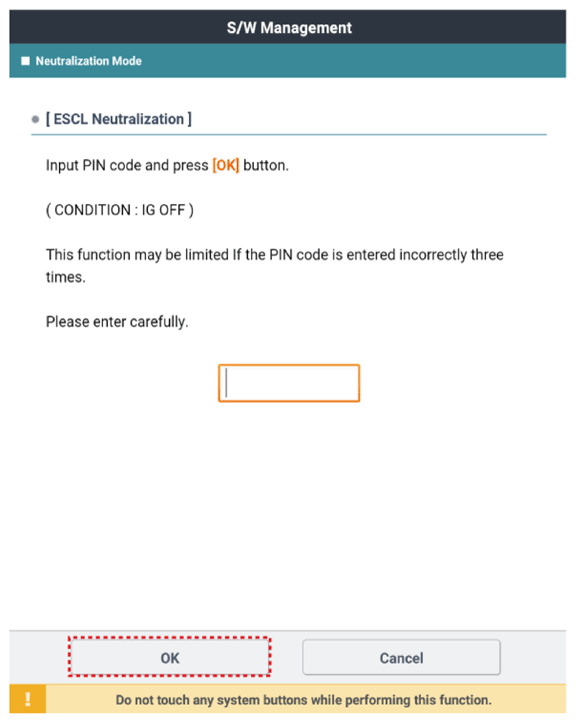

G12921376

Courtesy of KIA MOTORS AMERICA, INC.

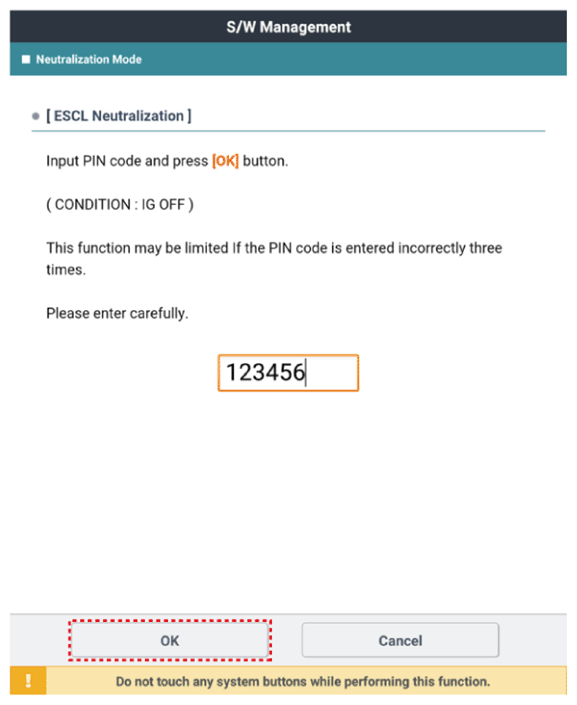

G12921377

Courtesy of KIA MOTORS AMERICA, INC.

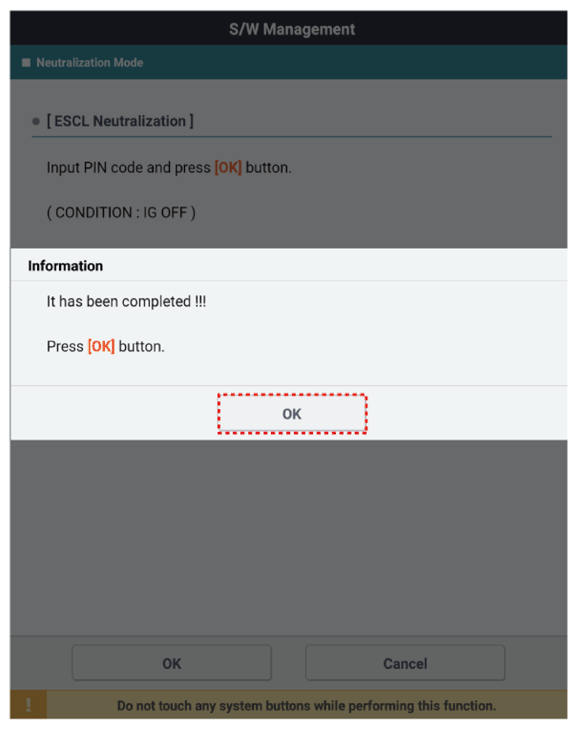

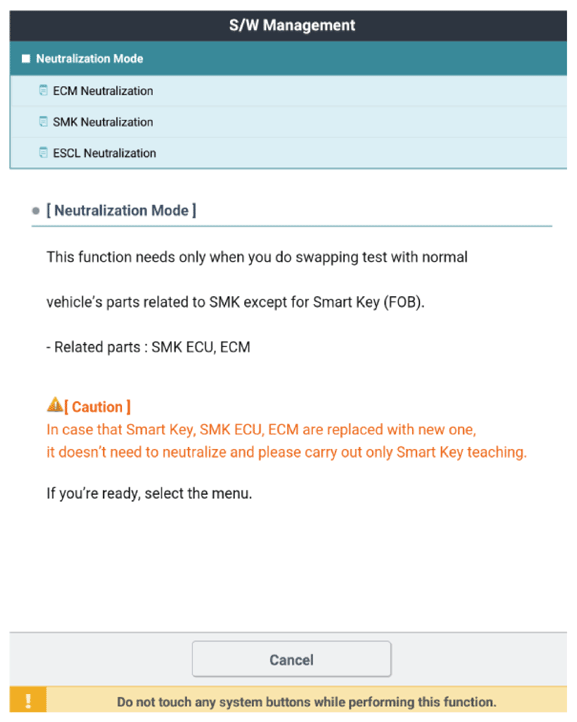

G12921378

Courtesy of KIA MOTORS AMERICA, INC.

G12921379

Courtesy of KIA MOTORS AMERICA, INC.

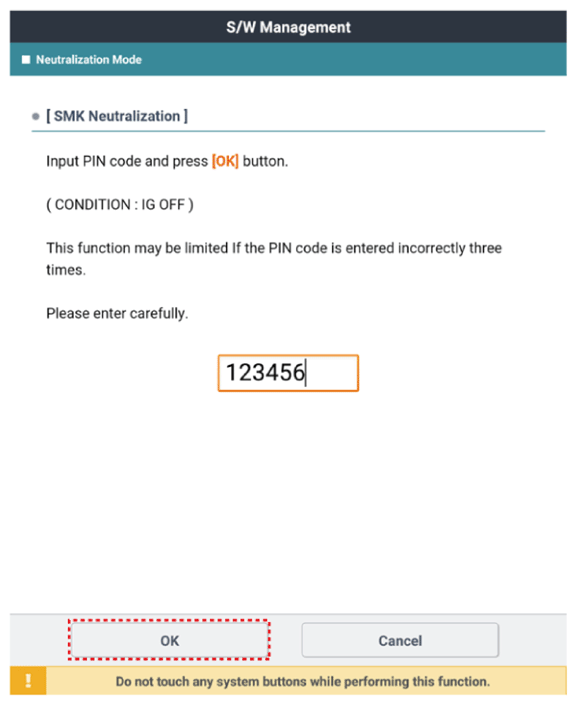

G12921380

Courtesy of KIA MOTORS AMERICA, INC.

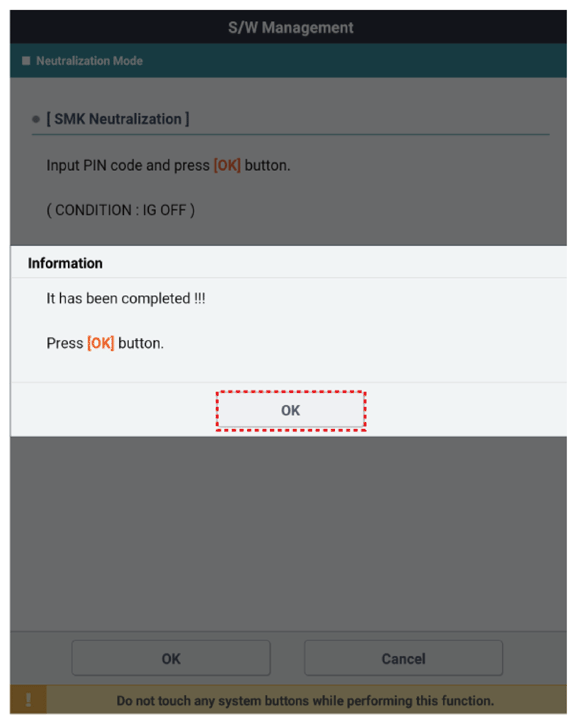

G12921381

Courtesy of KIA MOTORS AMERICA, INC.
