Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

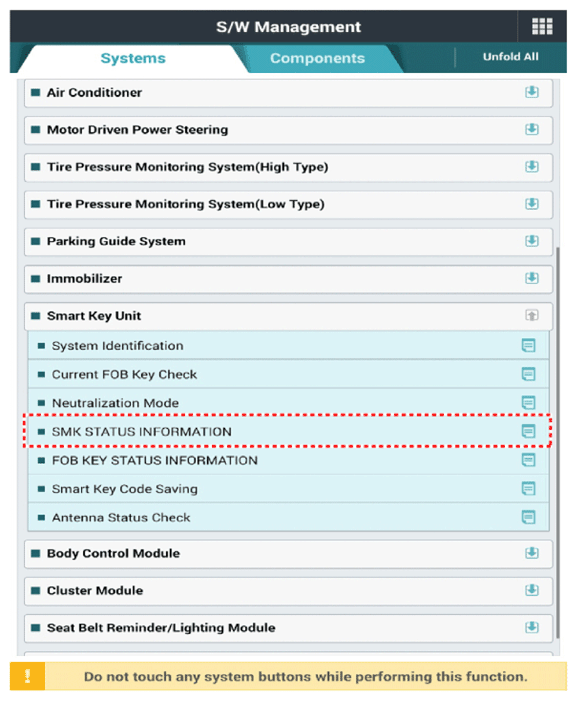

G12921367Courtesy of KIA MOTORS AMERICA, INC.

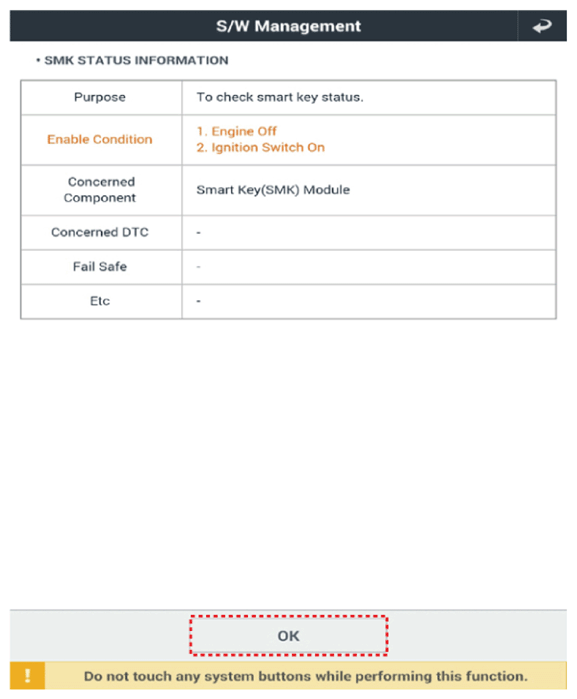

G12921368Courtesy of KIA MOTORS AMERICA, INC.

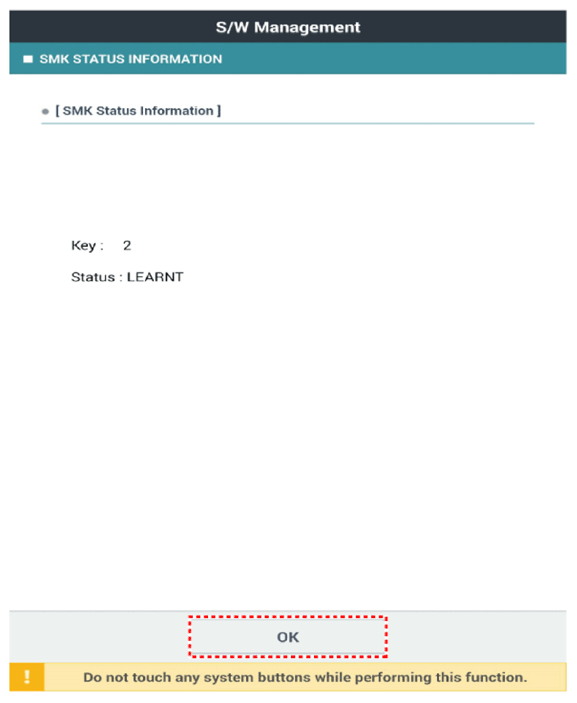

G12921369Courtesy of KIA MOTORS AMERICA, INC.
