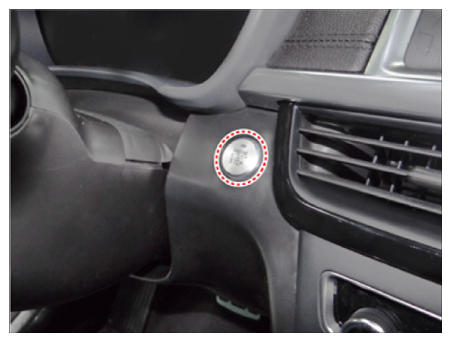

Start/Stop Button (SSB)
A single stage push button is used by the driver to operate the vehicle. Pressing this button allows:
- To activate the power modes 'Off', 'Accessory', 'Ignition' and 'Start' by switching the corresponding terminals
- To start the engine
- To stop the engine
The contact will be ensured by a micro-switch and a backlighting is provided to highlight the marking of the button whenever necessary.
LED lamps in 3 colors are located in the outside ring of the switch assembly to display the status of the system.
They are OFF (White)/ACC (Amber)/ON (Green).
