Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air duct and air cleaner. (Refer to Engine Mechanical System - "AIR CLEANER ")

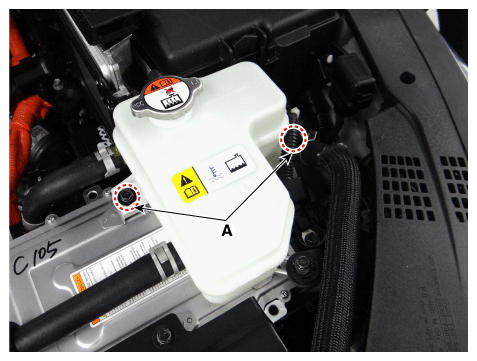

Remove the reservoir mounting bolts (A).
Reservoir Mounting Bolt :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 -4.3 lb.ft)

Fig 1: Locating Reservoir Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

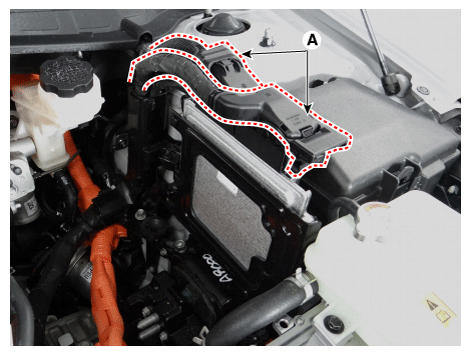

Disconnect the ECM connector (A).

Fig 2: Locating ECM Connector
Courtesy of KIA MOTORS AMERICA, INC.

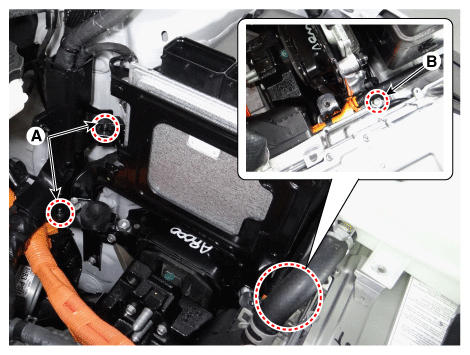

Remove the ECM bracket assembly after loosening the mounting nuts (A) and bolts (B).
ECM Bracket Assembly Mounting Nut/Bolt : 9.8 - 11.8 N.m

(1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 3: Locating ECM Bracket Assembly Mounting Nuts & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
