Smart Key Status Check

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After ignition "ON", select the "SMK STATUS INFO".

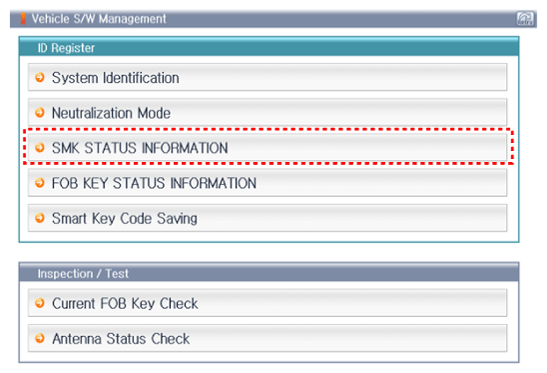

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

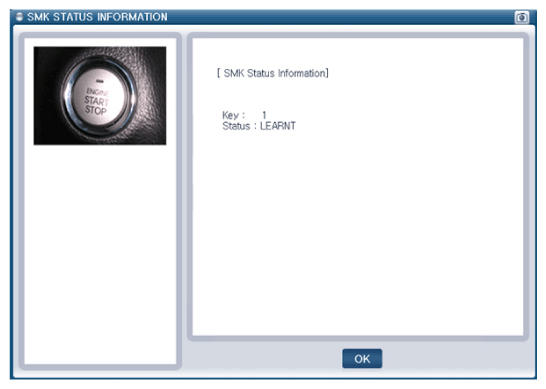

Fig 2: Scantool Display - SMK Status Information
Courtesy of KIA MOTORS AMERICA, INC.
