Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper.
(Refer to Body - "FRONT BUMPER COVER ")
Disconnect the ASCC radar & unit connector (A).

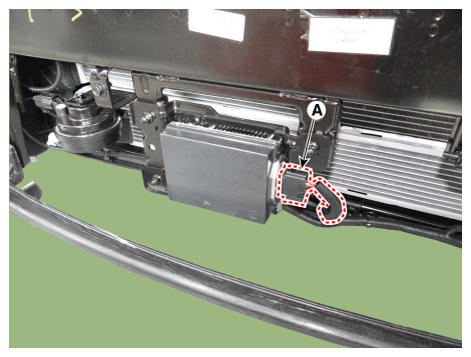

Fig 1: Disconnecting ASCC Radar & Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ASCC radar & ECU (A) after loosening the mounting nuts (B).

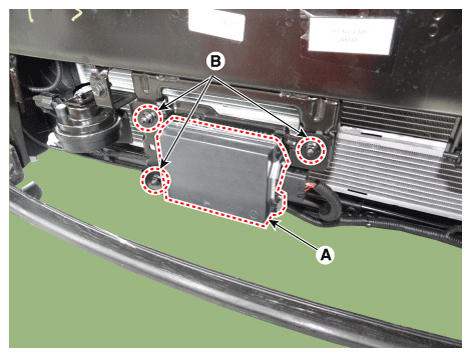

Fig 2: Removing ASCC Radar & ECU Mounting Nuts

Courtesy of KIA MOTORS AMERICA, INC.
