Clutch Pressure Sensor (CPS)
WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
- Type: Piezo-Resistive Pressure Sensor
- Specification (Vref = 5.0V)

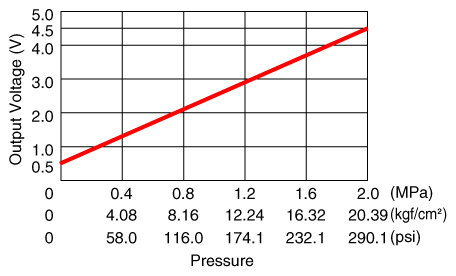

CLUTCH PRESSURE SENSOR (CPS) SPECIFICATIONS
| Pressure[MPa (kgf/cm2 , psi)] | Output Voltage (V) |
|---|---|
| 0 (0, 0) | 0.5 |
| 0.2 (2.04, 29.0) | 0.9 |
| 0.4 (4.08, 58.0) | 1.3 |
| 0.6 (6.12, 87.0) | 1.7 |
| 0.8 (8.16, 116.0) | 2.1 |
| 1.0 (10.20, 145.0) | 2.5 |
| 1.2 (12.24, 174.1) | 2.9 |
| 1.4 (14.28, 203.1) | 3.3 |
| 1.6 (16.32, 232.1) | 3.7 |
| 1.8 (18.35, 261.1) | 4.1 |
| 2.0 (20.39, 290.1) | 4.5 |
