Repair Procedures: Removal: Buzzer

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

    (Refer to Body - "FRONT WHEEL GUARD ")

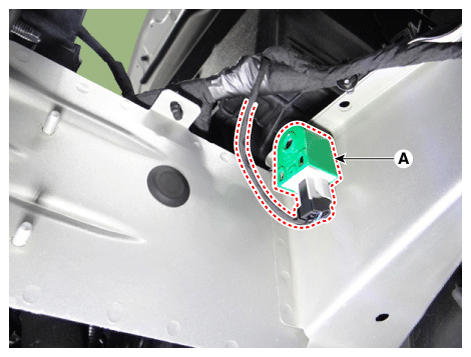

  3. Remove the buzzer (A) after disconnecting the connector.
G12351895Courtesy of KIA MOTORS AMERICA, INC.
