Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

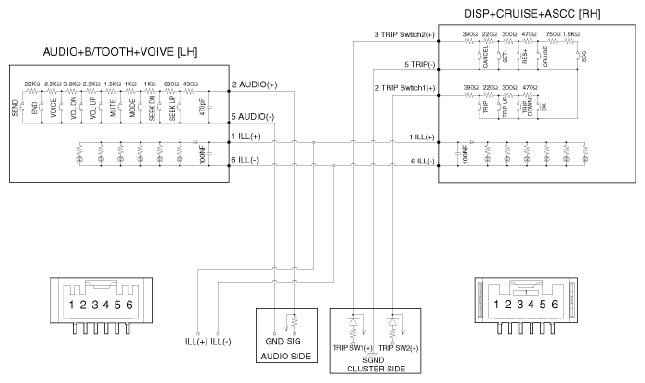

G13076709Courtesy of KIA MOTORS AMERICA, INC.

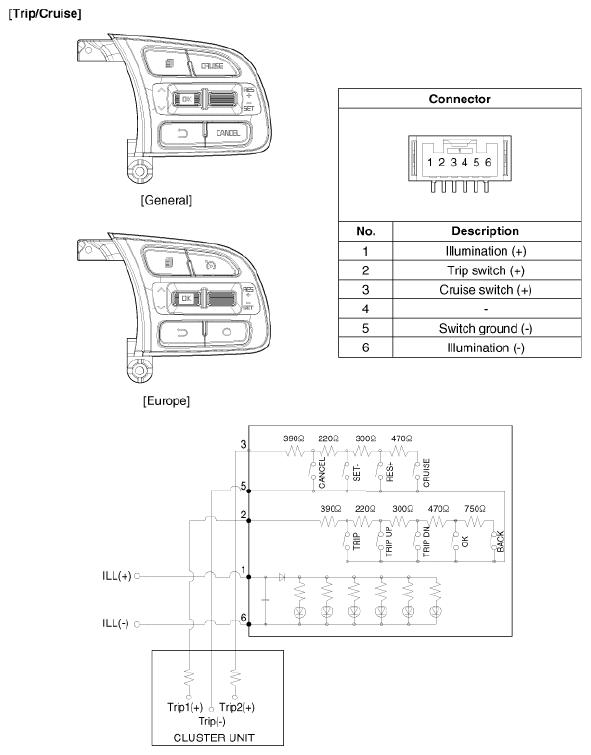

G13076710Courtesy of KIA MOTORS AMERICA, INC.

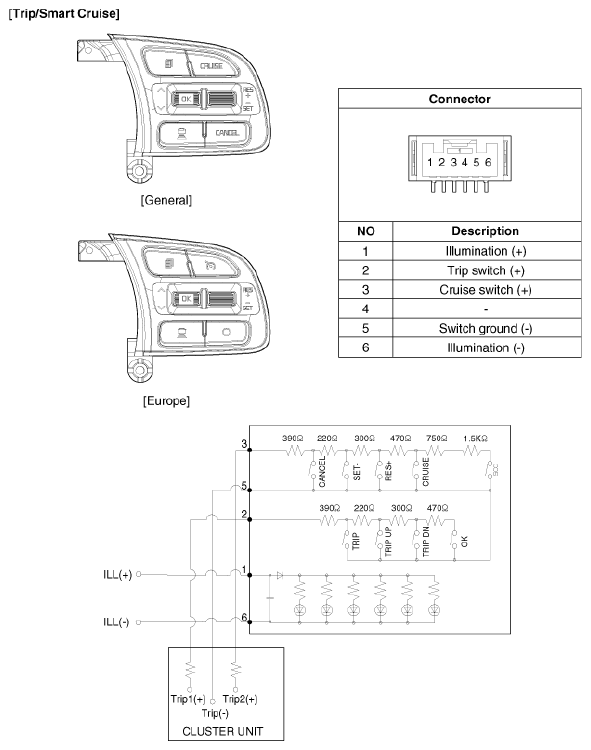

G13076711Courtesy of KIA MOTORS AMERICA, INC.

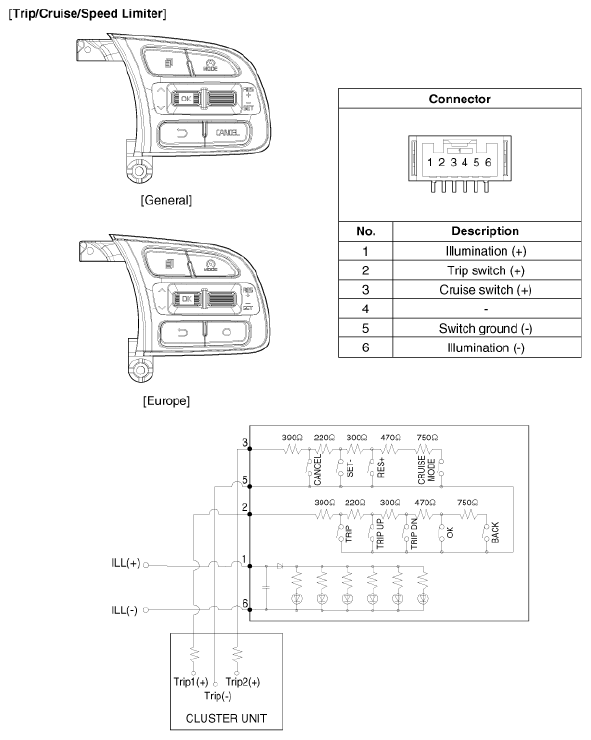

G13076712Courtesy of KIA MOTORS AMERICA, INC.

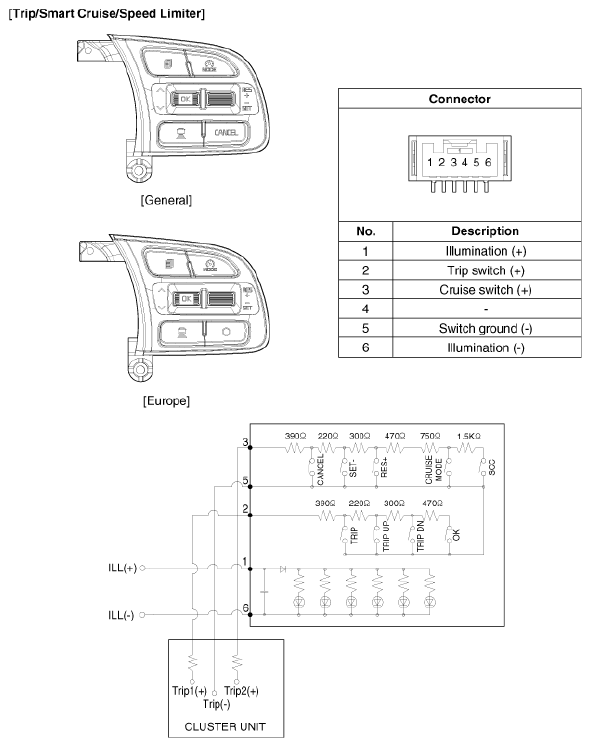

G13076713Courtesy of KIA MOTORS AMERICA, INC.
