Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

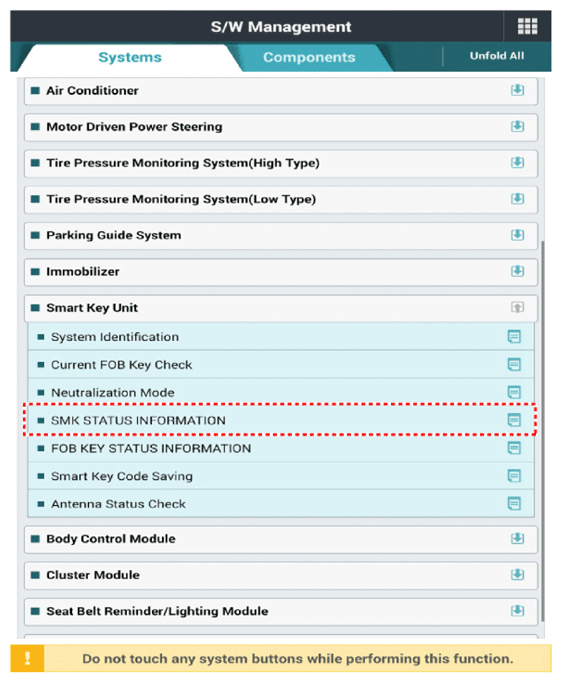

    G13158537Courtesy of KIA MOTORS AMERICA, INC.

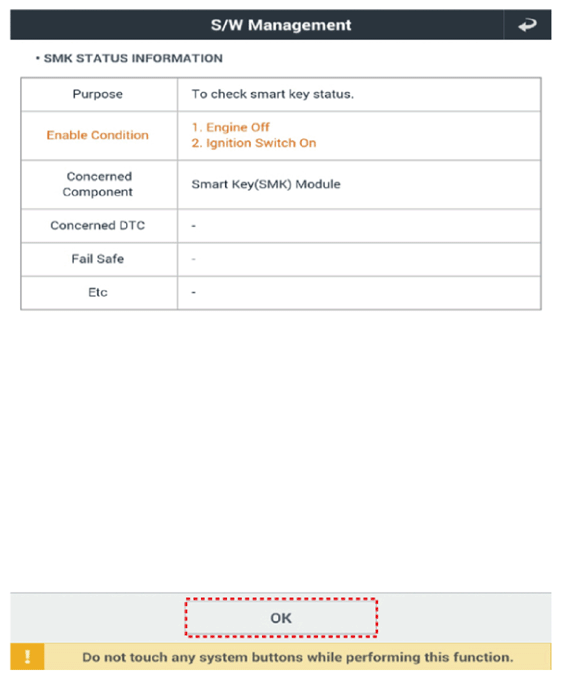

    G13158538Courtesy of KIA MOTORS AMERICA, INC.

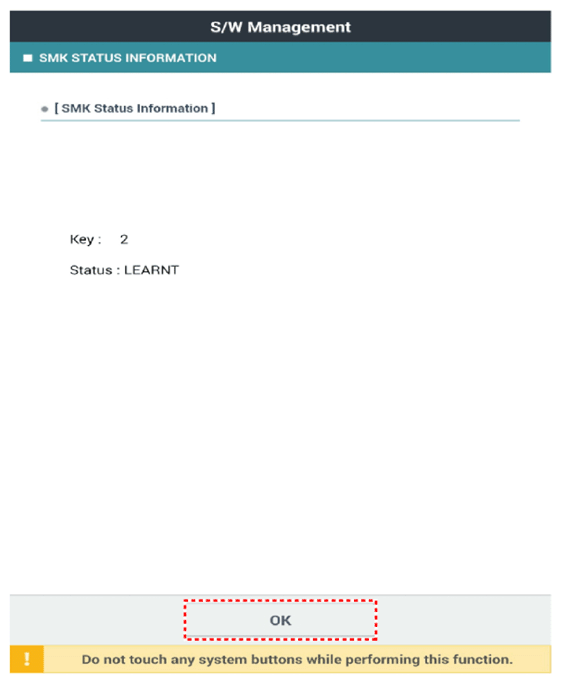

    G13158539Courtesy of KIA MOTORS AMERICA, INC.
