Door Outside Handle

WARNING: This page is about a different variant/trim than selected.

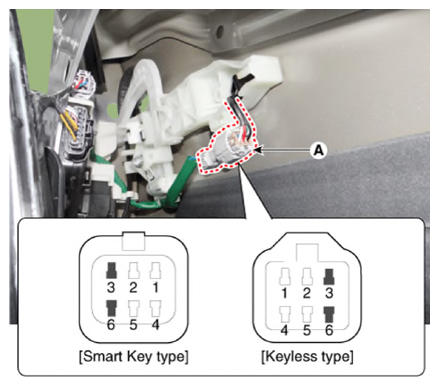

Disconnect the front door outside handle connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Check for continuity between terminals No. 3 and No.

Courtesy of KIA MOTORS AMERICA, INC.

No	Description
1	Door antenna (+)
2	Pocket lamp LED (+)
3	Door lock/unlock button switch
4	Door antenna (-)
5	Pocket lamp LED (-)
6	Door lock/unlock button switch ground

Courtesy of KIA MOTORS AMERICA, INC.
