Trunk Open Switch

WARNING: This page is about a different variant/trim than selected.

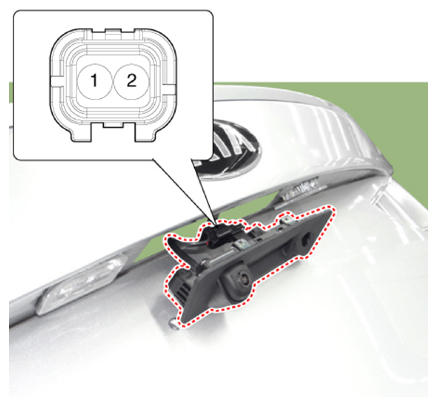

  1. Check for continuity between the trunk open switch terminals.
    G13158518Courtesy of KIA MOTORS AMERICA, INC.

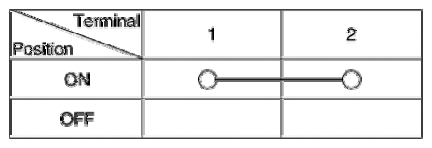

  2. If continuity is not as specified, inspect the switch.
    G13158519Courtesy of KIA MOTORS AMERICA, INC.
